WhatsApp Integration

🔹 Before App Installation​

Pre-Installation Checklist​

Complete these steps before proceeding with the installation.

💬 WhatsApp Setup Guide (Reseller SaaS License)​

Set up WhatsApp integration for your Reseller SaaS using WhautoChat.

🛠 Step 0: Locate Configuration File​

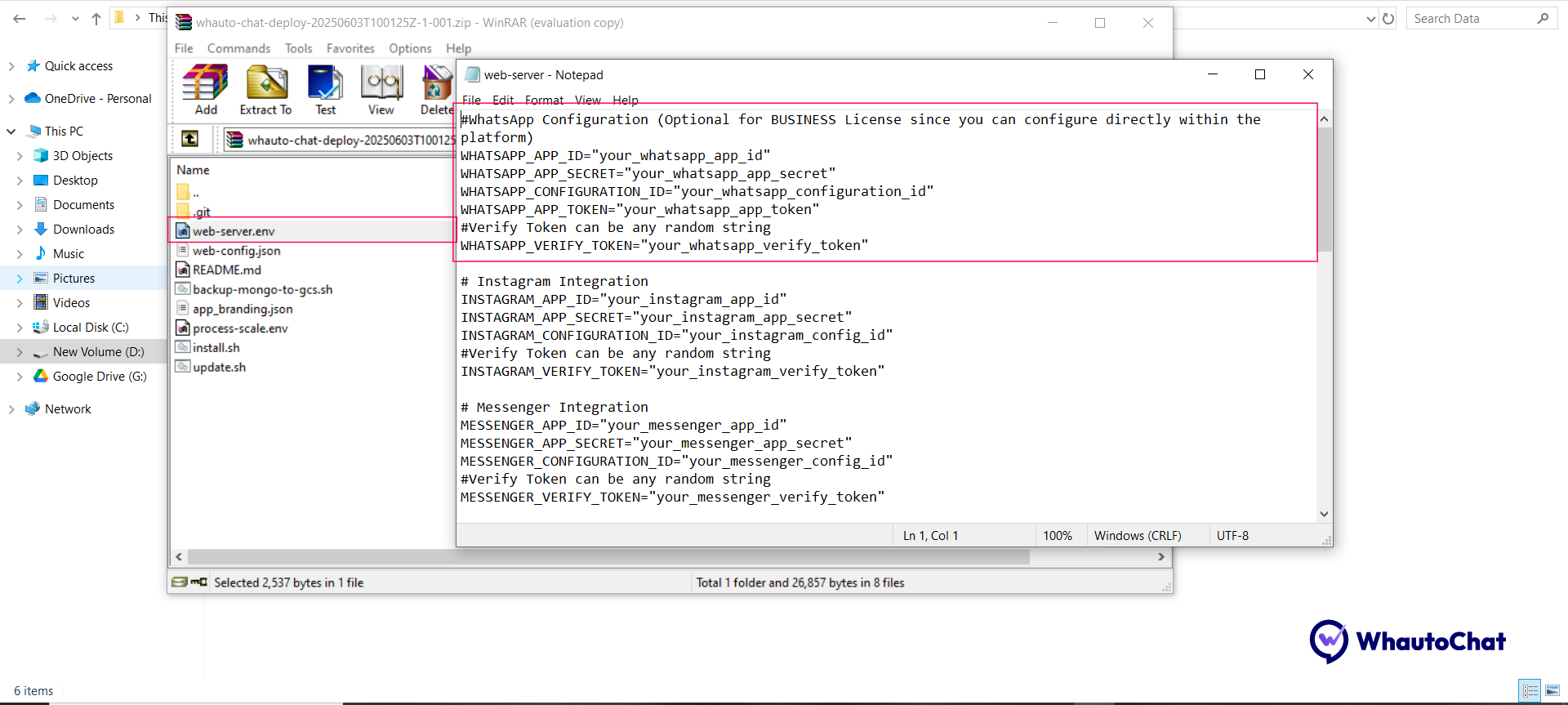

  1. Navigate to the web-server.env file in the installation folder provided by the WhautoChat team.
  2. Update the following WhatsApp integration settings:
# WhatsApp Integration
WHATSAPP_APP_ID="your_whatsapp_app_id"
WHATSAPP_APP_SECRET="your_whatsapp_app_secret"
WHATSAPP_CONFIGURATION_ID="your_whatsapp_configuration_id"
WHATSAPP_APP_TOKEN="your_whatsapp_app_token"

# Generate a random string for webhook validation at:
# https://www.random.org/strings/?num=10&len=10&digits=on&upperalpha=on&loweralpha=on&unique=on
WHATSAPP_VERIFY_TOKEN="your_whatsapp_verify_token"

WhatsApp Configuration File

📝 Note: For Business License users, WhatsApp can be configured directly within the platform. These steps are optional for them.

🧩 Step 1: Create a Meta Business Portfolio​

If you already have a Meta Business Suite account, skip this step.

  1. Go to business.facebook.com
  2. Log in with your Facebook account
  3. Create a Meta Business Suite account — this will generate your business portfolio

👨‍💻 Step 2: Register as a Meta Developer​

  1. Go to developers.facebook.com
  2. Log in or sign up for a Developer account

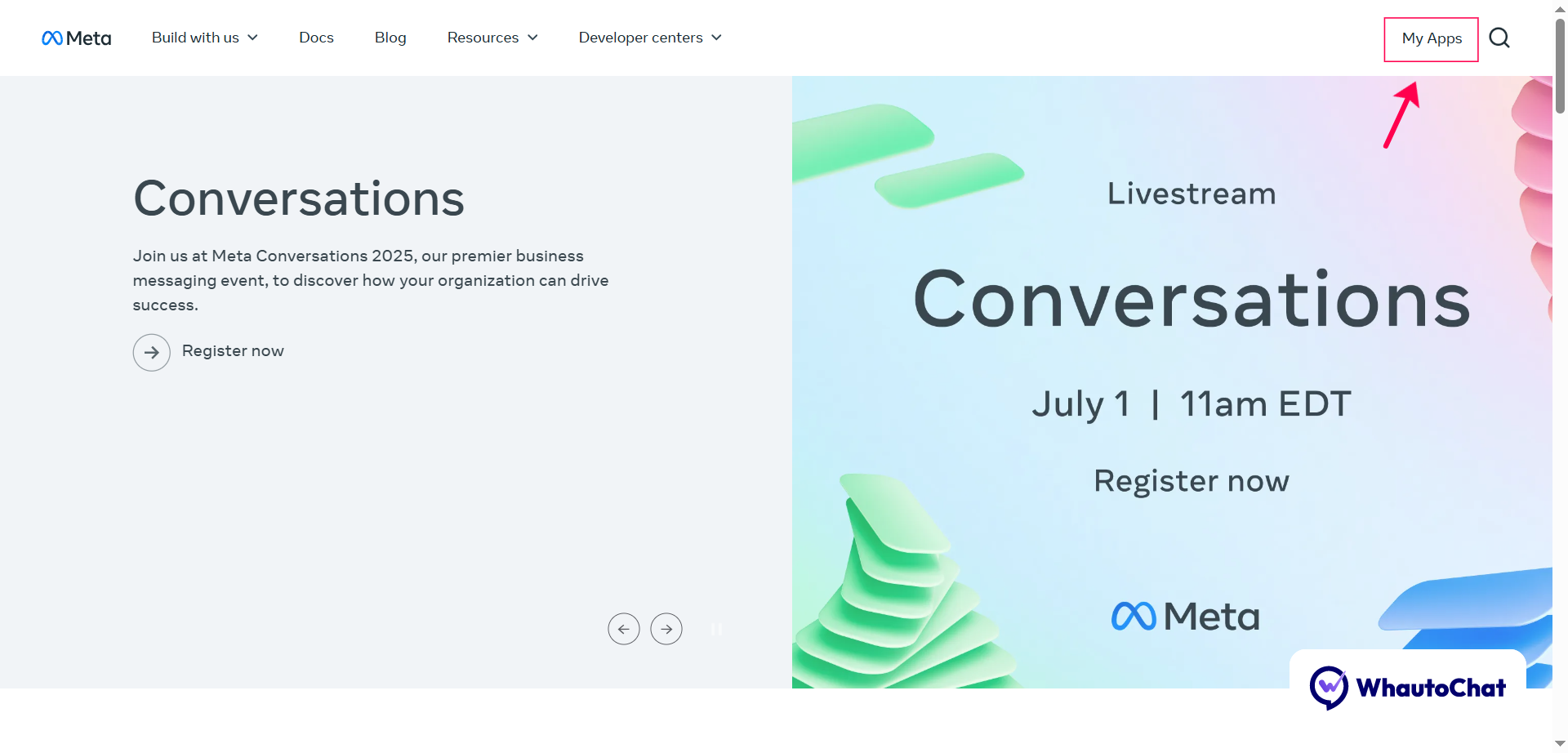

  3. Click on "My Apps" in the top-right corner, then click "Create App"

My Apps

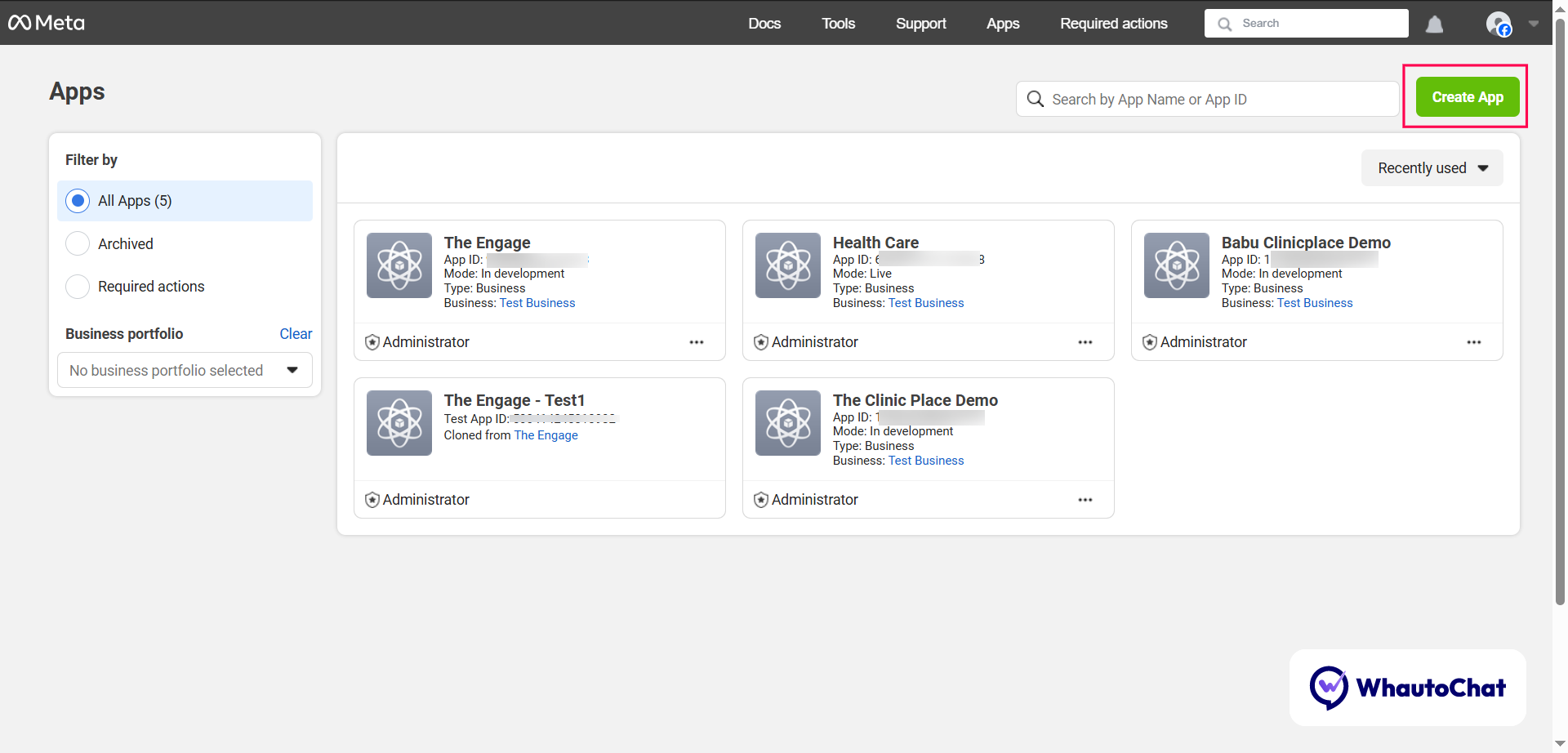

  1. Click the Create App button in the top-right corner

Create App

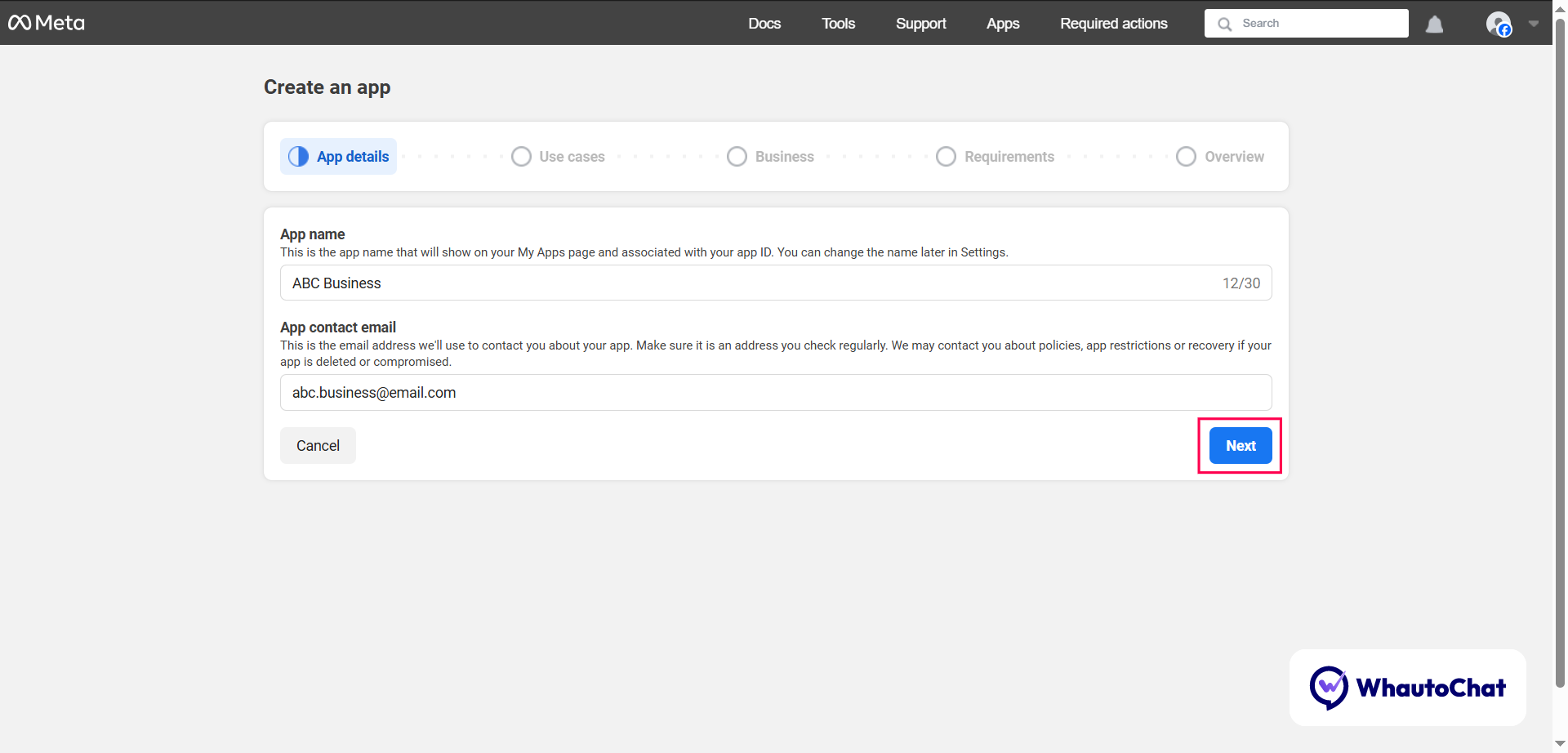

  1. Enter the app details:
  • App Name (e.g., ABC Business)
  • Contact Email → Click Next

App Details

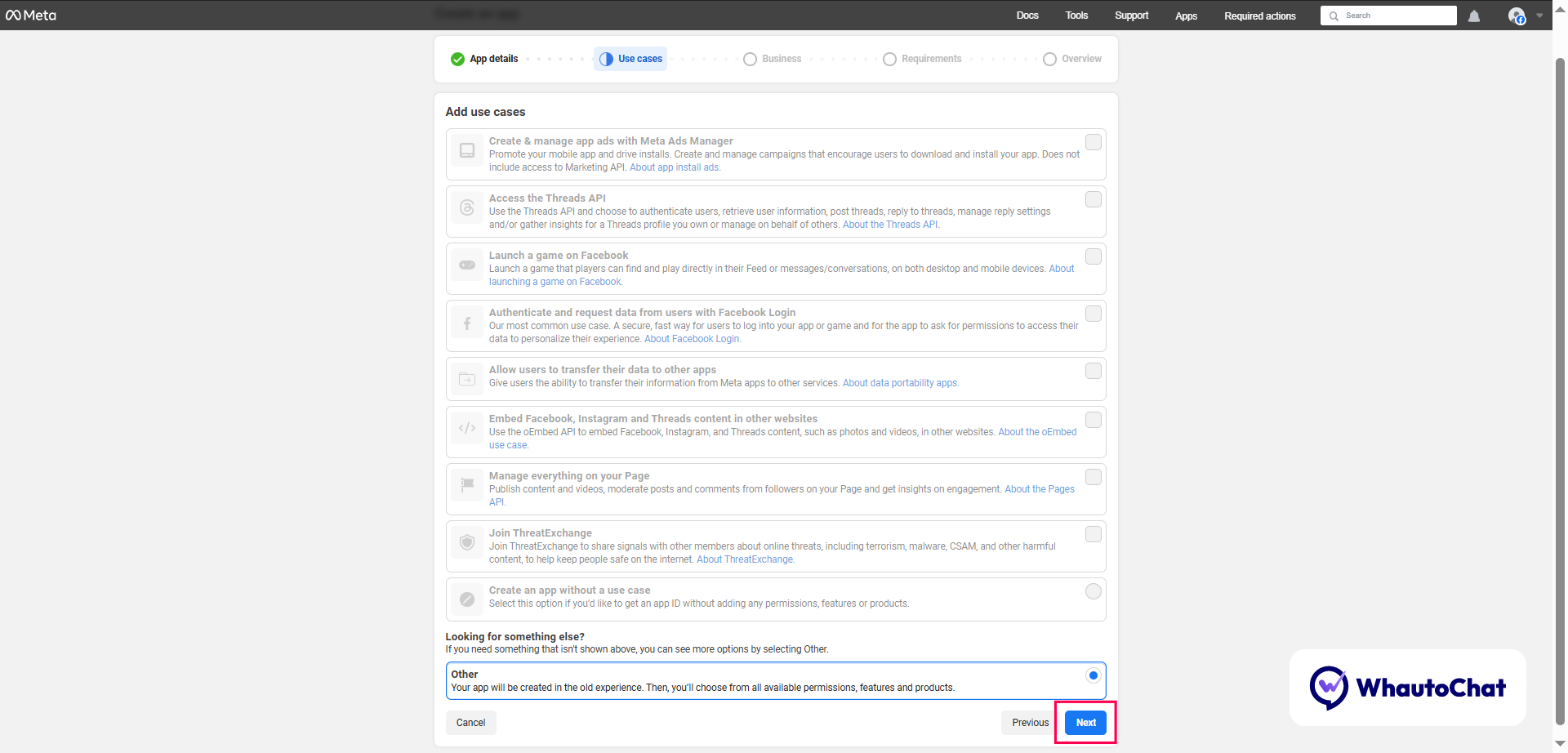

  1. Use Cases: Select Other → Click Next

Use Case

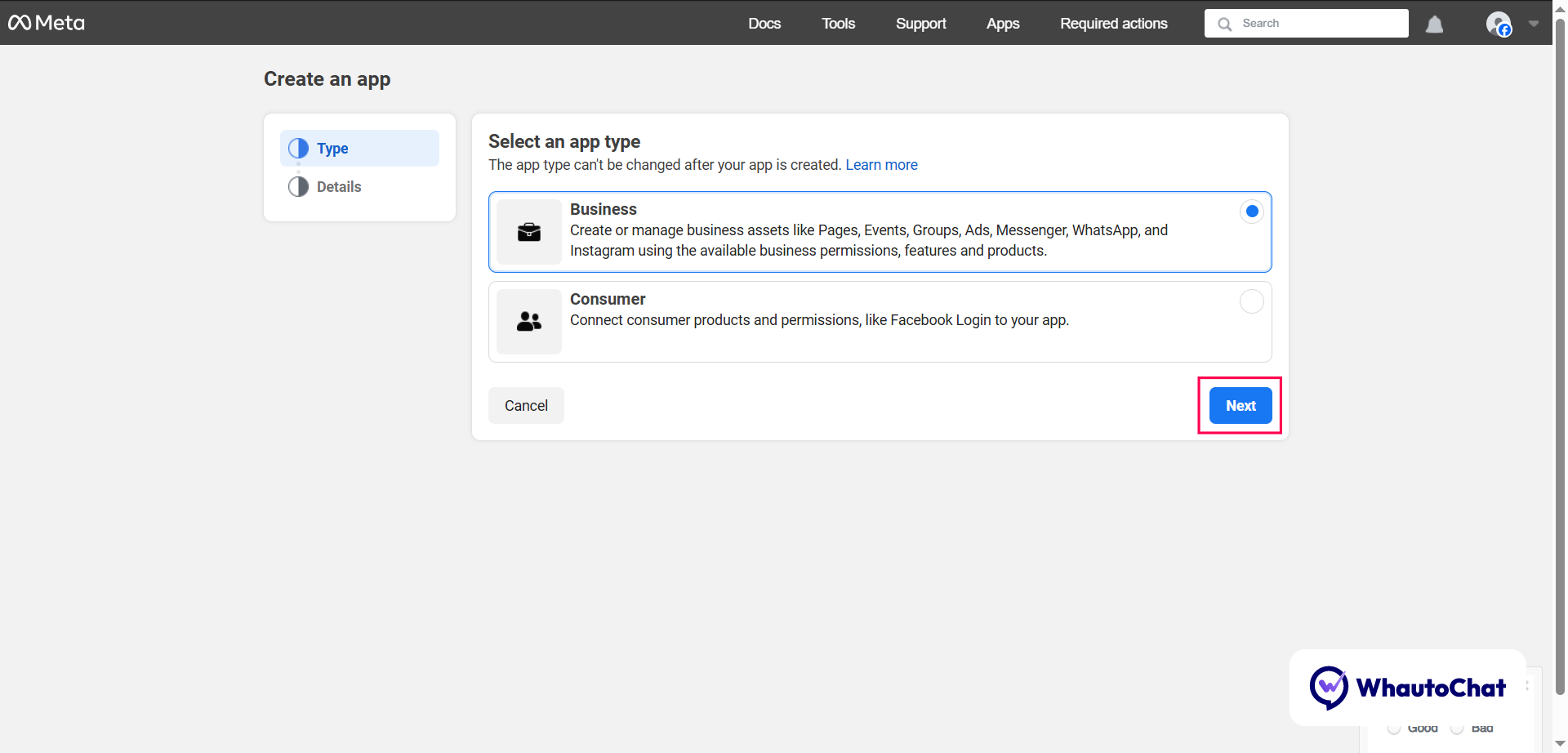

  1. App Type: Select Business option → Click Next

App Type

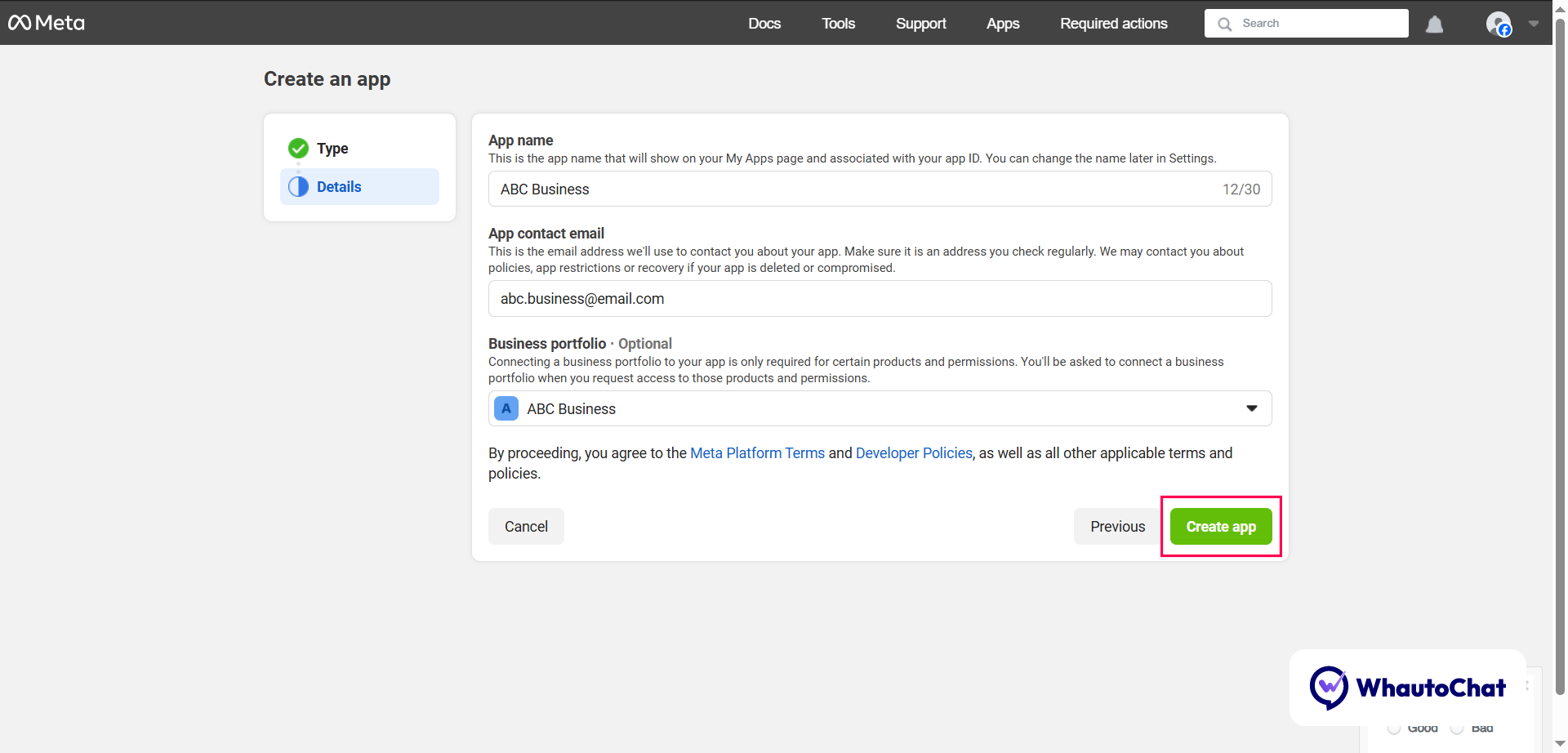

  1. Business Portfolio: Choose your Meta Business Account → Click Create App

Business Portfolio

⚙️ Step 3: Update App Settings​

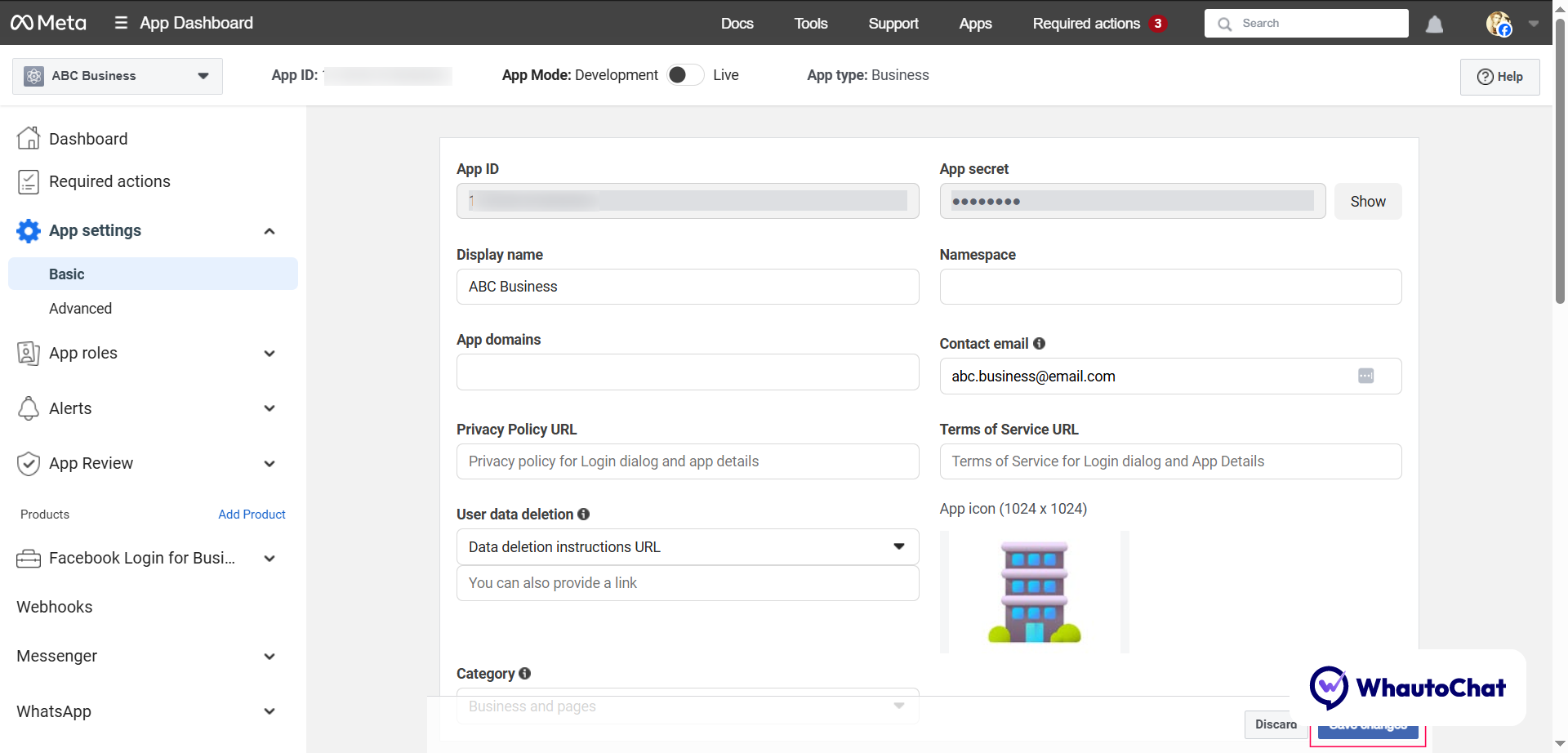

  1. Go to App Settings → Basic
  2. Update:
  • App Icon
  • Privacy Policy & Terms URLs
  • App Category
  • Platform details (if needed)
  1. Click Save Changes

Update App Settings

Note: Be sure to save your changes. You can add additional information if you wish, but the information above is the only information required to complete the remaining steps.

🔑 Step 4: Get App ID and App Secret​

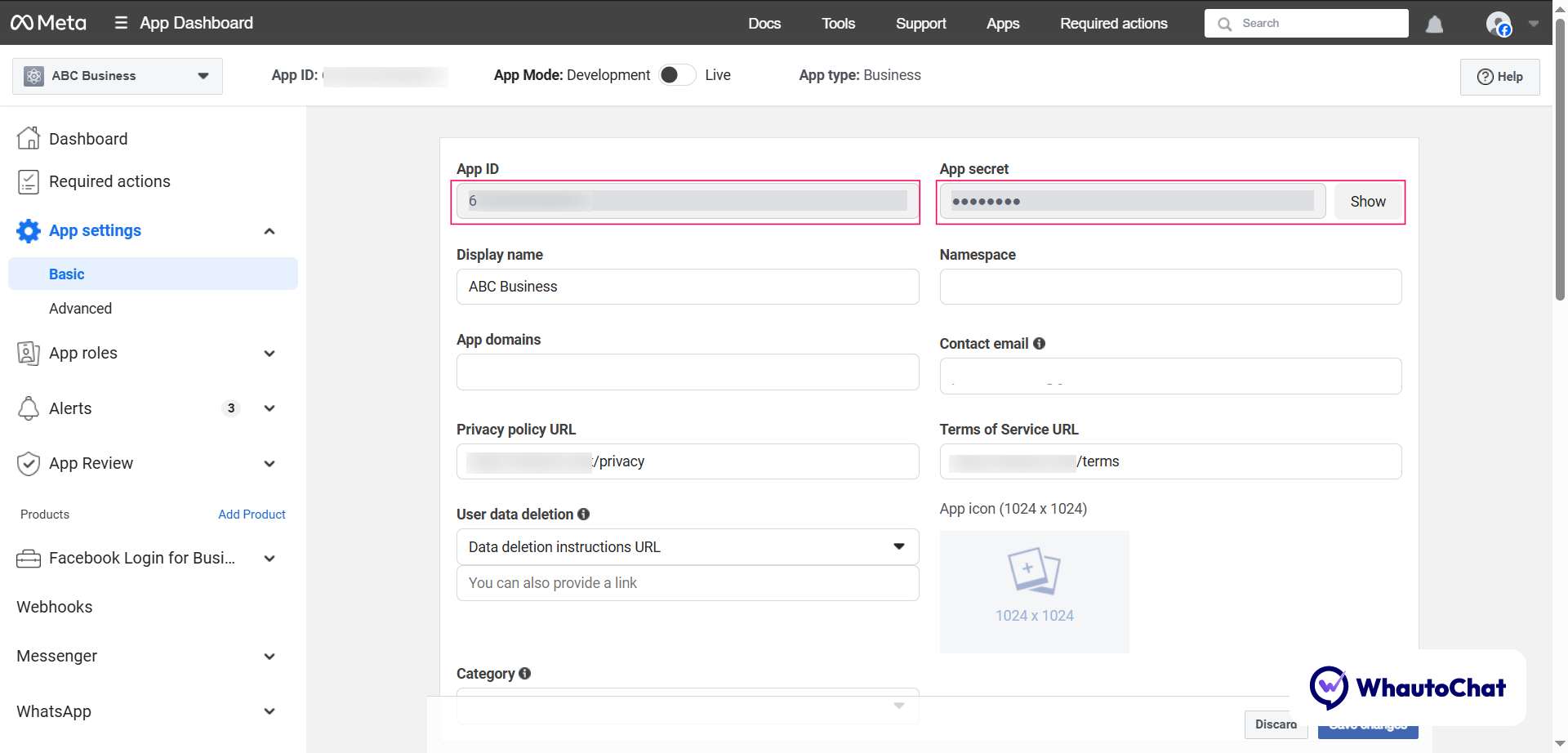

  1. In your Meta app, go to Settings > Basic
  2. Copy the App ID and App Secret:
  • App ID → paste into WHATSAPP_APP_ID
  • App Secret → paste into WHATSAPP_APP_SECRET
  • Update your (web-server.env) file with these values.

App ID and App Secret

⚙️ Step 5: Configure WhatsApp Login​

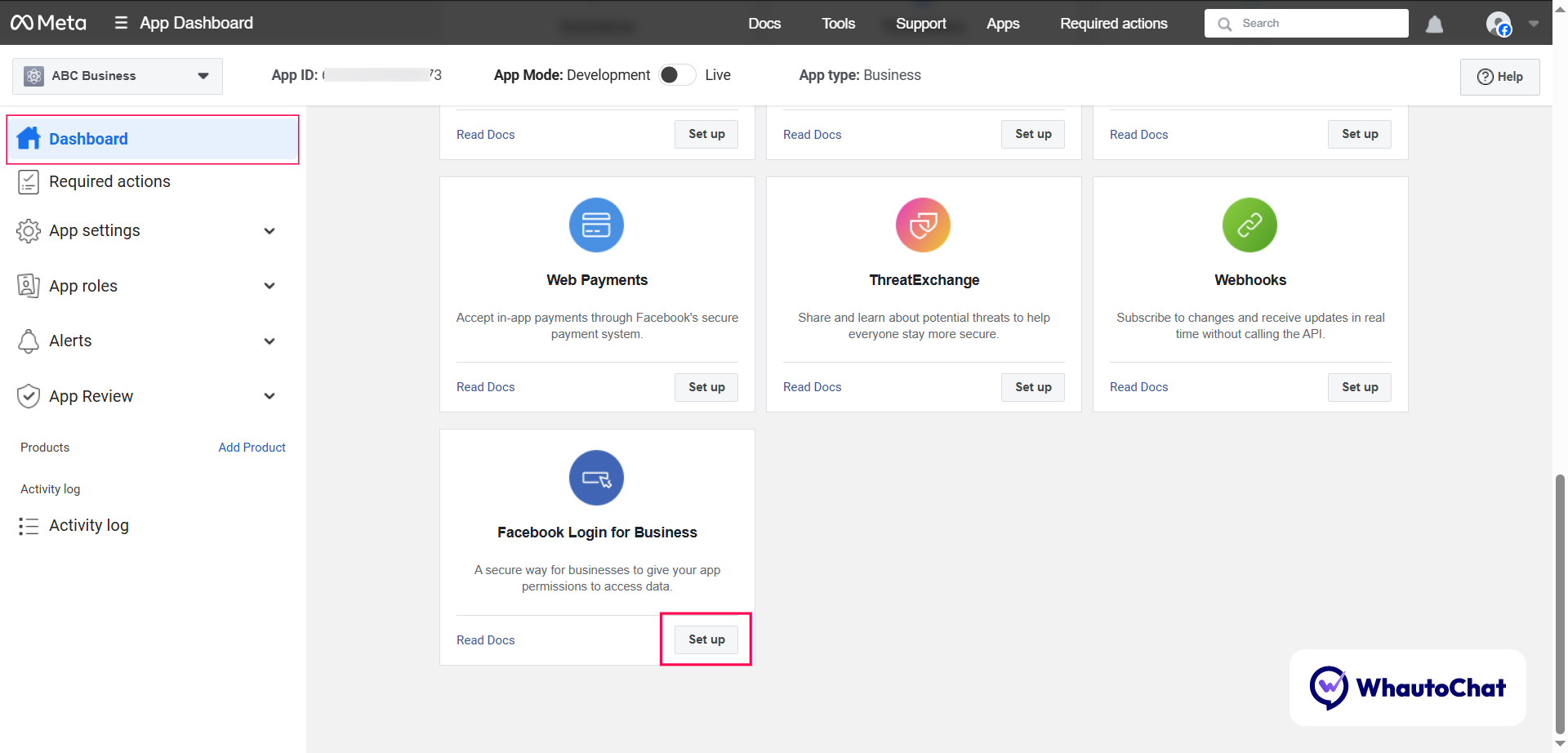

  1. Go to Dashboard → Scroll to Facebook Login for Business → Click Set Up

Facebook Login

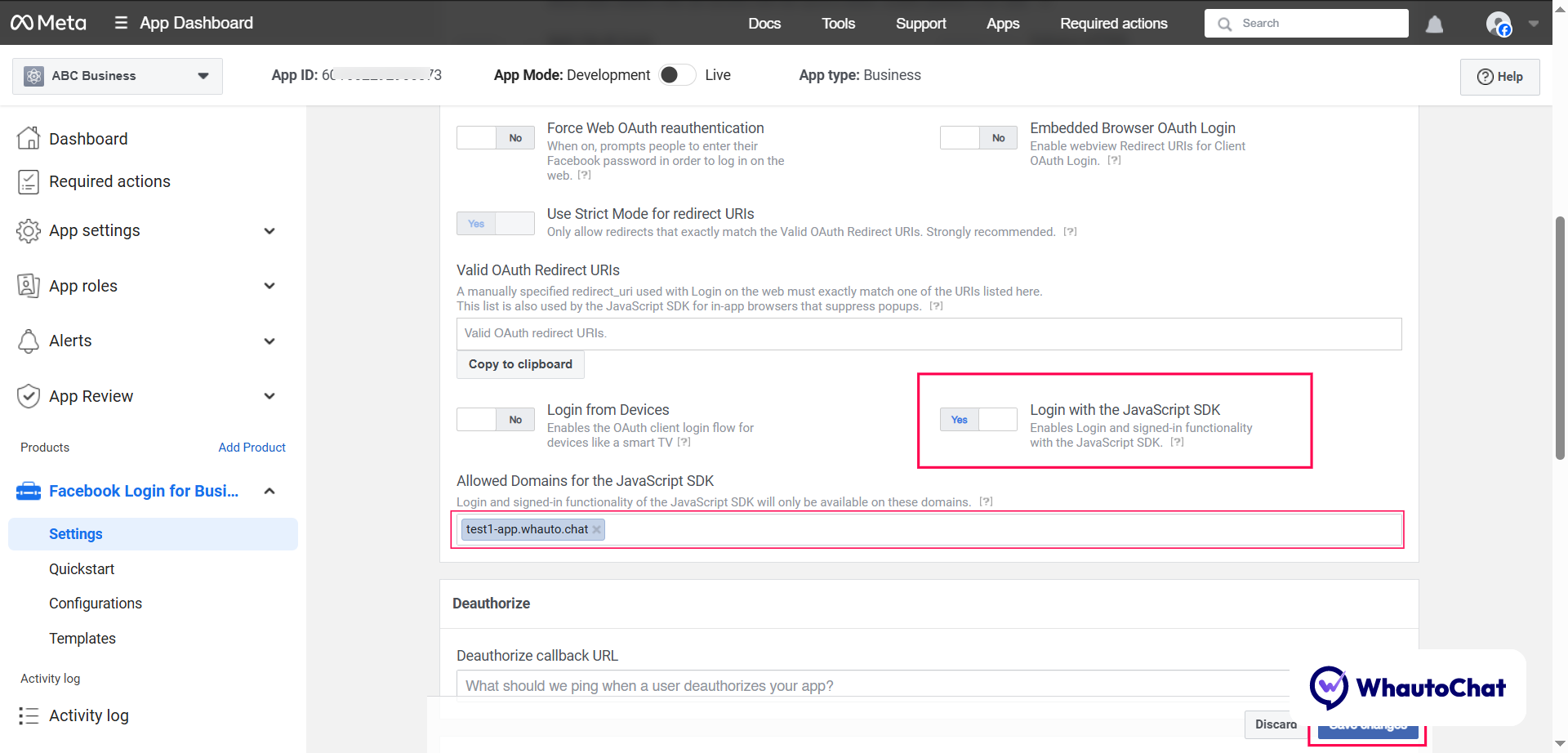

  1. In Settings, enable Login with JavaScript SDK

JavaScript SDK

🔁 Step 6: Create WhatsApp Configuration​

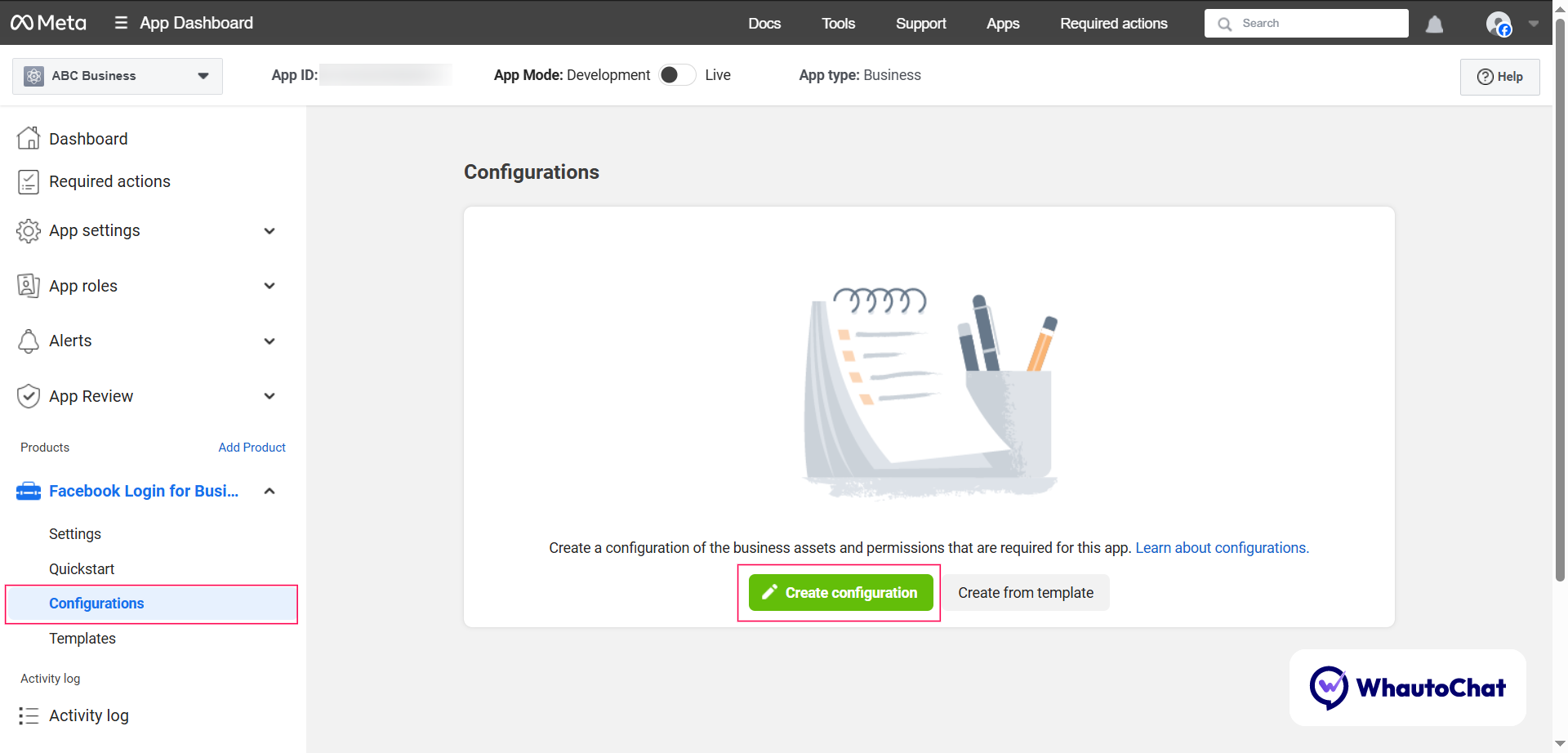

  1. Go to Configuration → Click Create Configuration

Create WhatsApp Configuration

  1. Name it (e.g., WhatsApp) → Click Next

Configuration Name

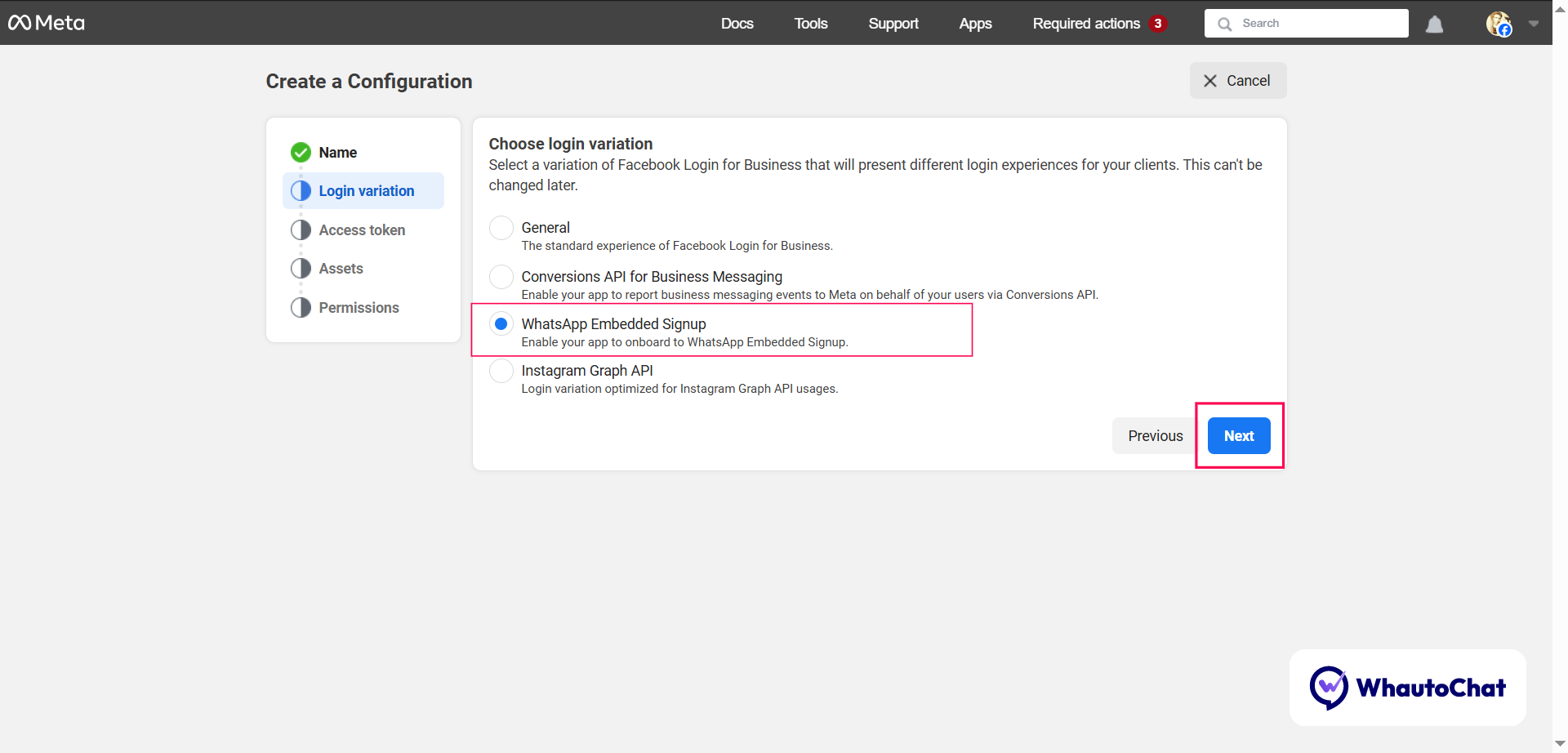

  1. Login Variation: Choose WhatsApp Embedded Signup → Click Next ⚠️ Make sure your Meta Business is verified — required to access this option.

Login Variation

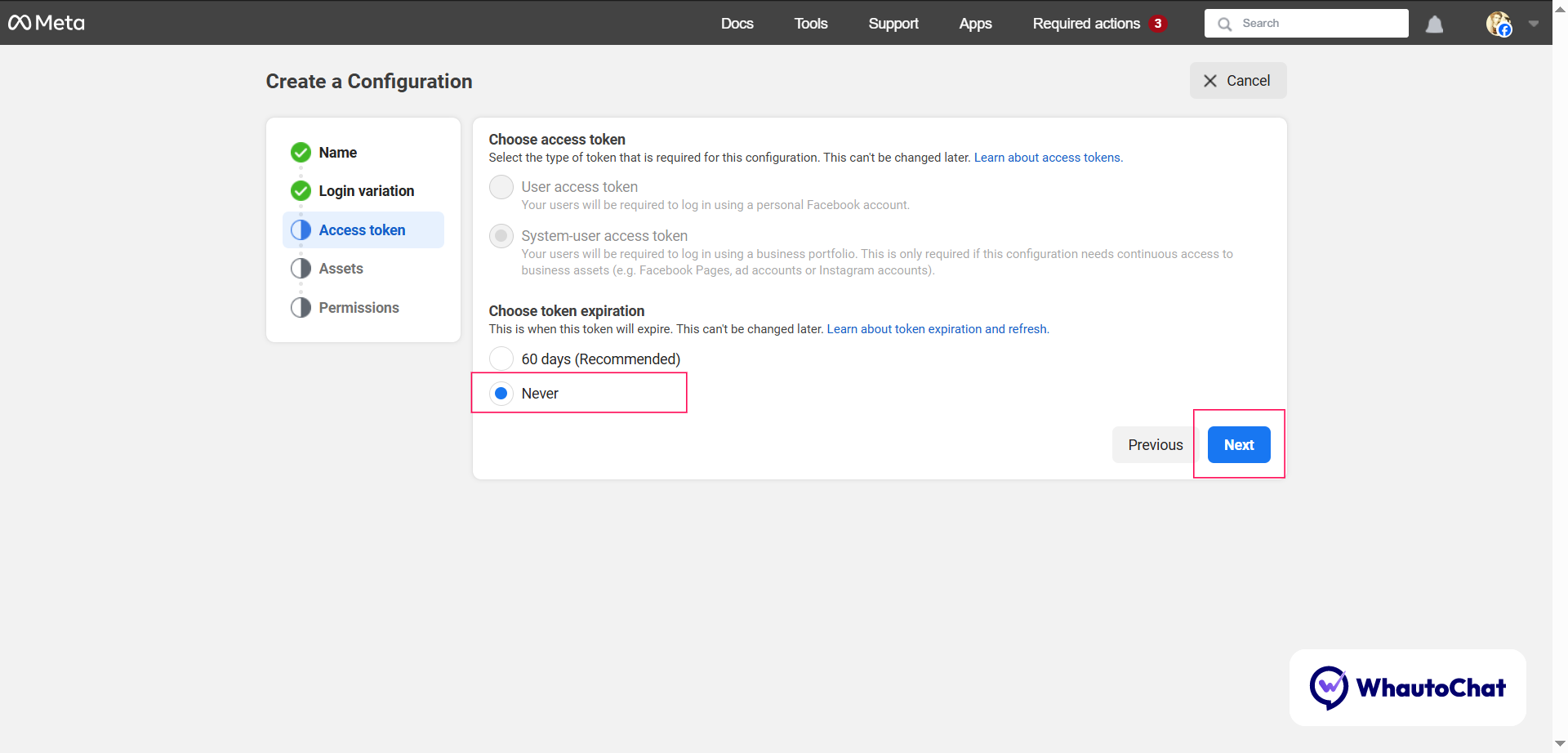

  1. Token Expiration: Select Never → Click Next

Access Token Expiration

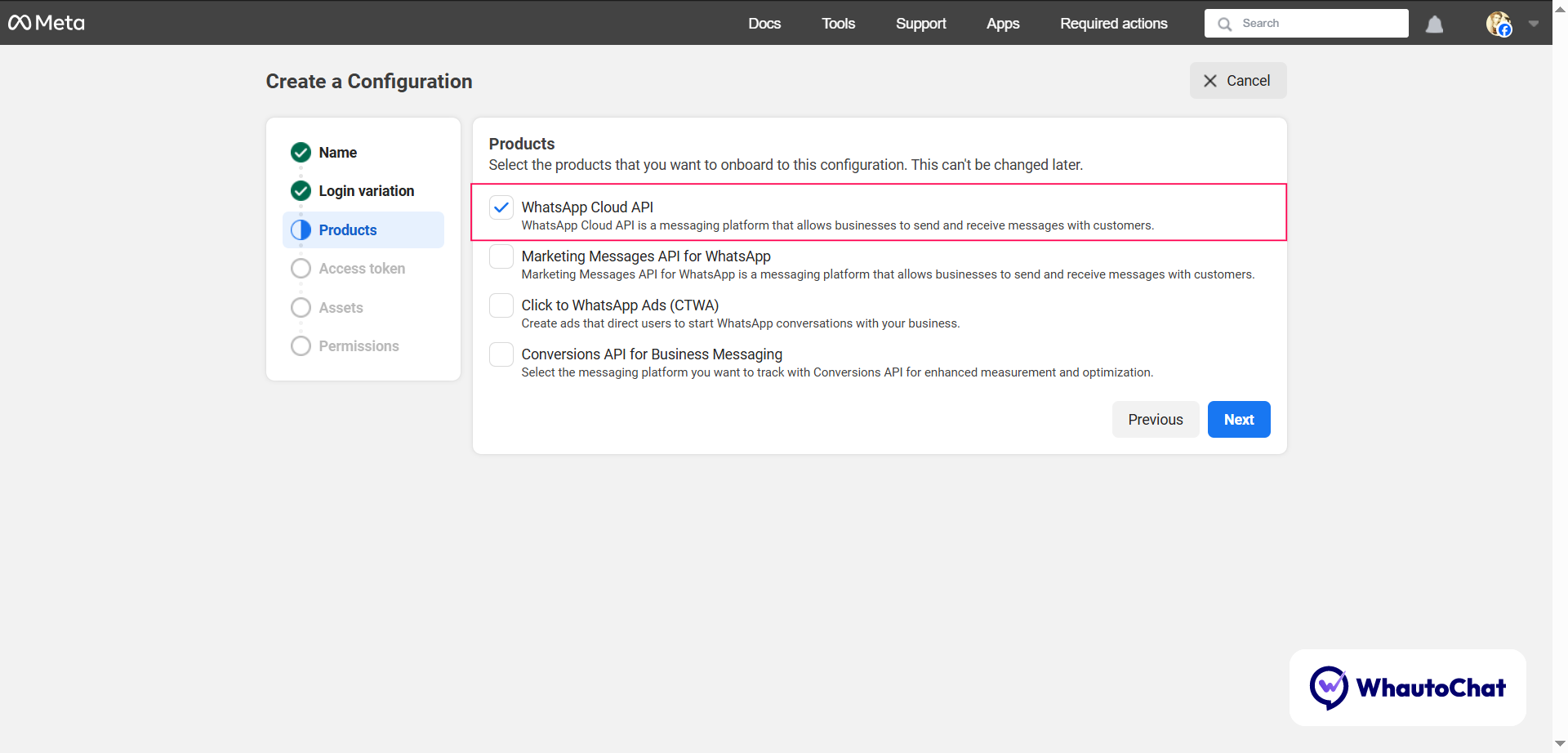

  1. Choose Products: Select WhatsApp Cloud API only Click Next.

Choose Product

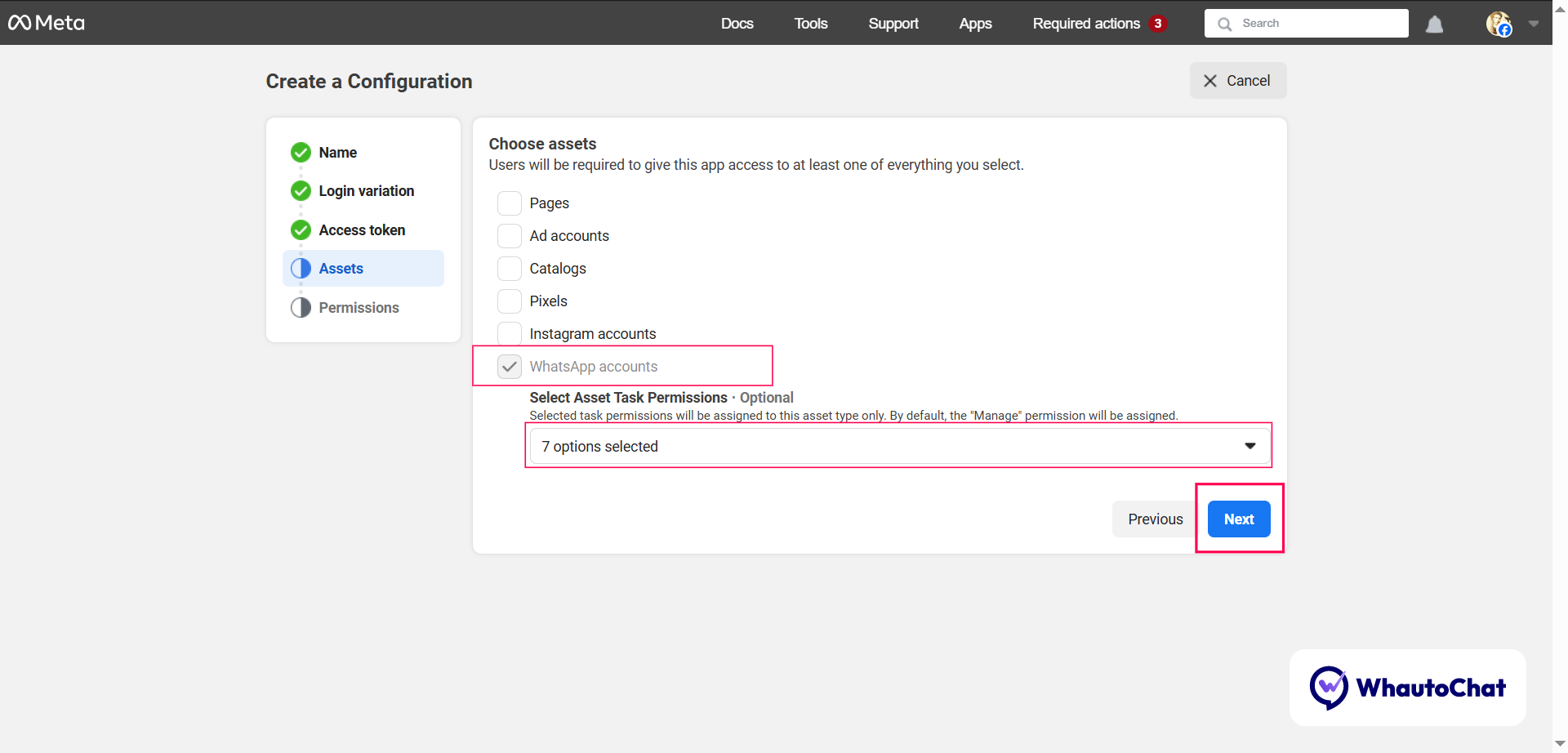

  1. Choose Assets:
  • Select WhatsApp Accounts
  • Asset Task Permissions (Select all):
  • manage
  • develop
  • manage_templates
  • view_phone_assets
  • manage_phone_assets
  • view_templates
  • Messaging

Assests and Permissions

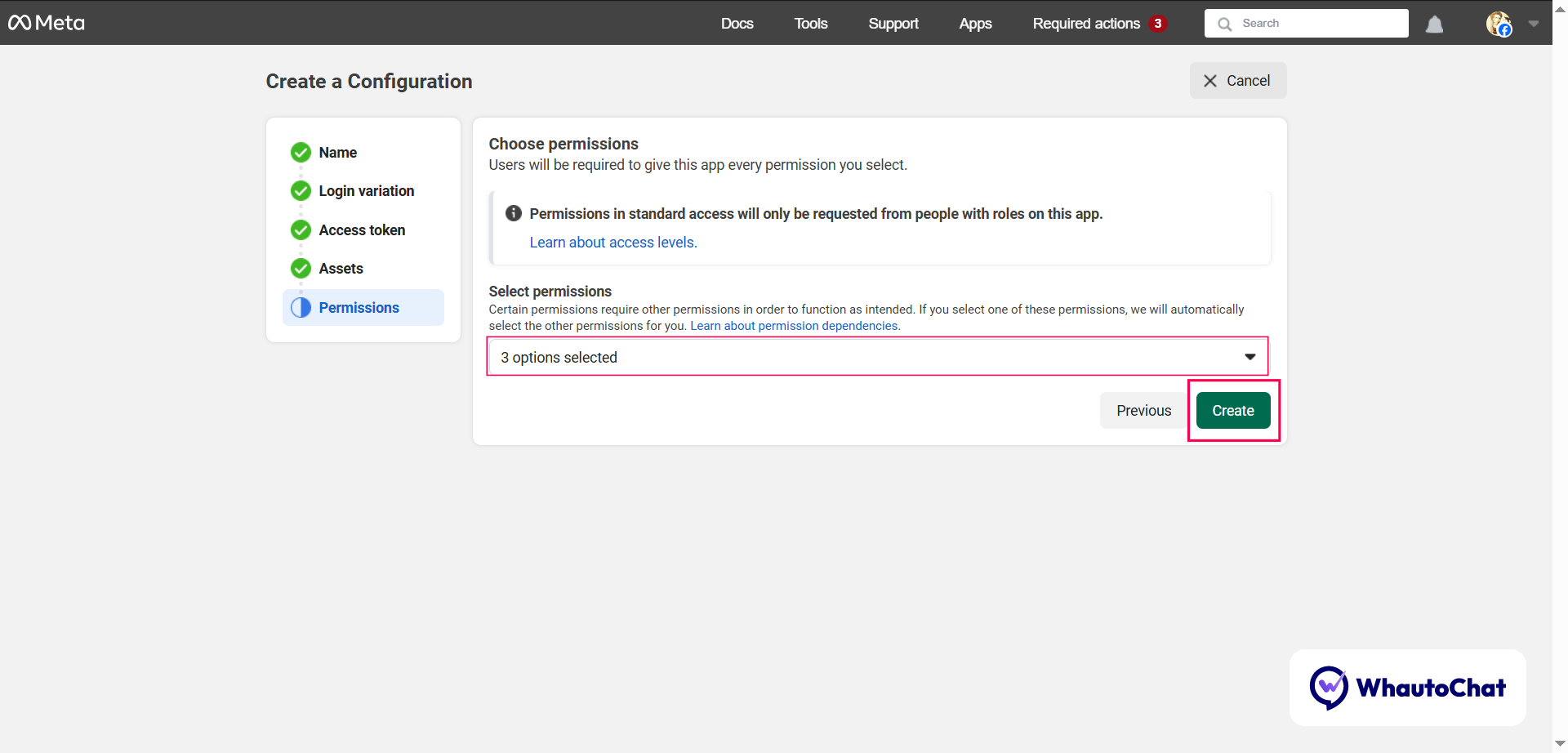

  1. Select below mentioned 3 Permissions and click Create.
  • whatsapp_business_management
  • business_management
  • Whatsapp_business_messaging

WhatsApp Permissions

✅ WhatsApp Configuration is now created. Copy the Configuration ID → Paste into WHATSAPP_CONFIGURATION_ID Update your (web-server.env) file with this value.

🔐 Step 7: Generate WhatsApp App Token​

  1. Go to https://business.facebook.com/settings and select your business portfolio to continue

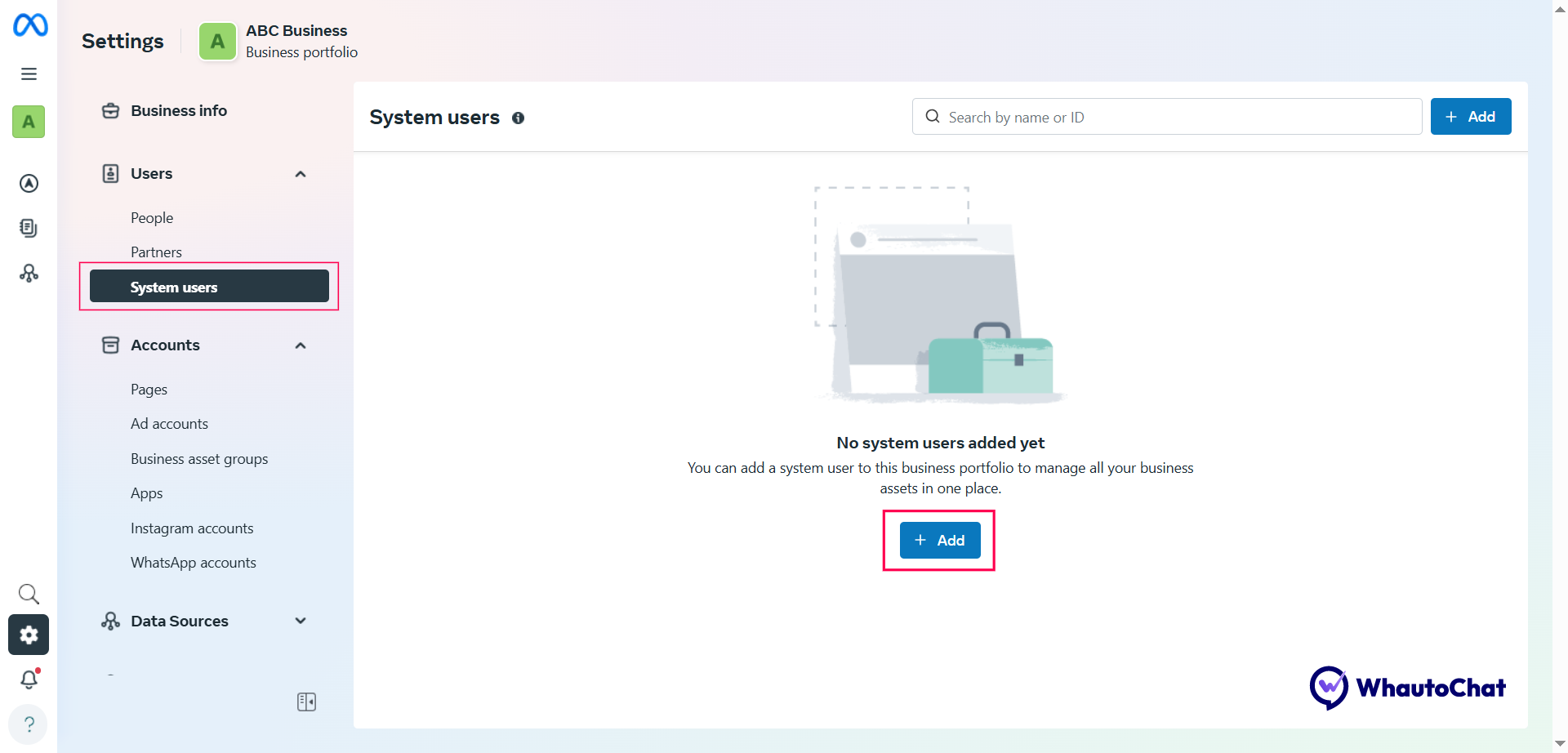

  2. In the left panel, under Users, click System Users → Click Add

System User

  1. Create System User:
  • Enter Name (e.g., abc-business)
  • Role: Select Admin (Or) Employee → Click Create

Create System User

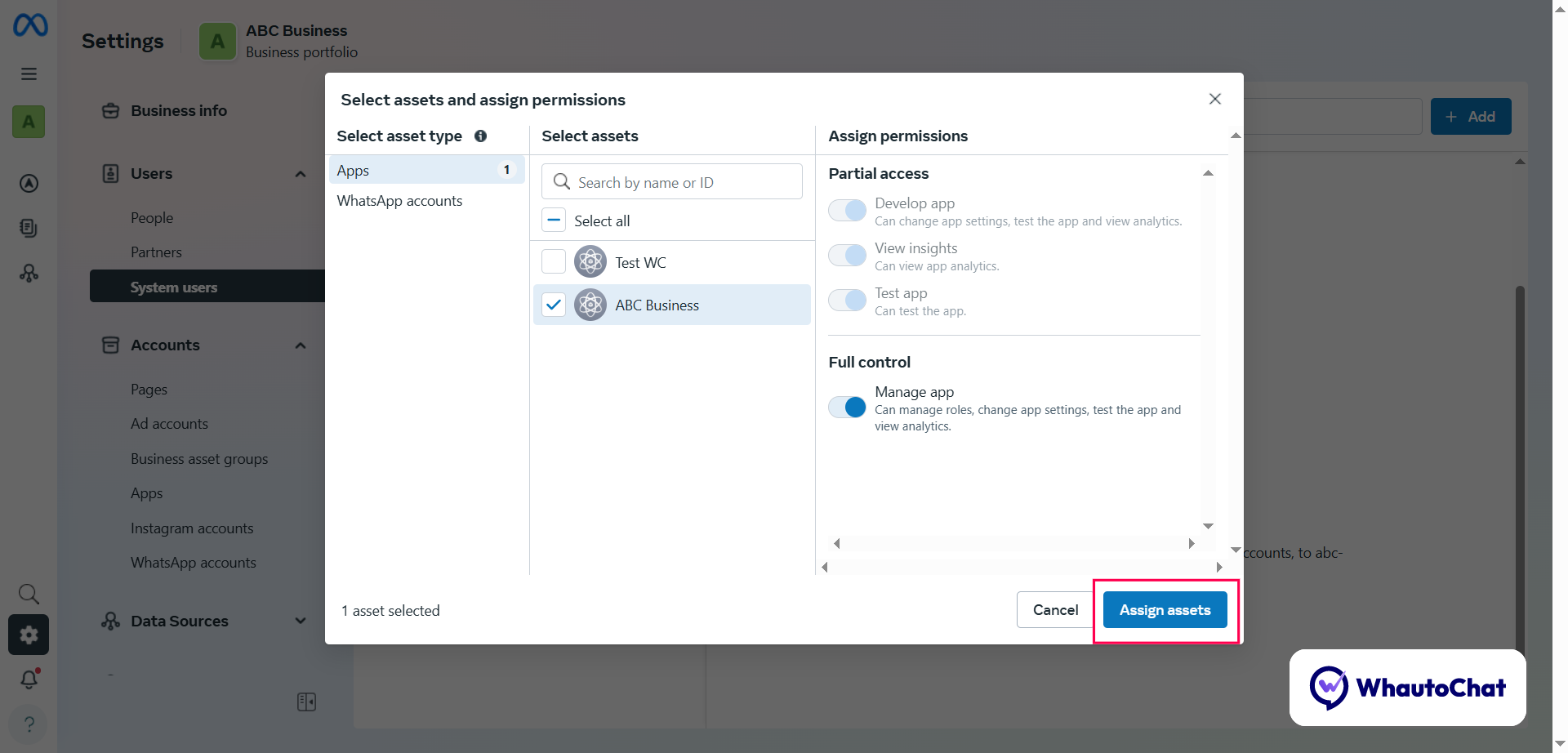

  1. Click Assign Assets:
  • Select your Meta App → Enable Full Control (Manage App) → Click Assign Assets

Assign Assets

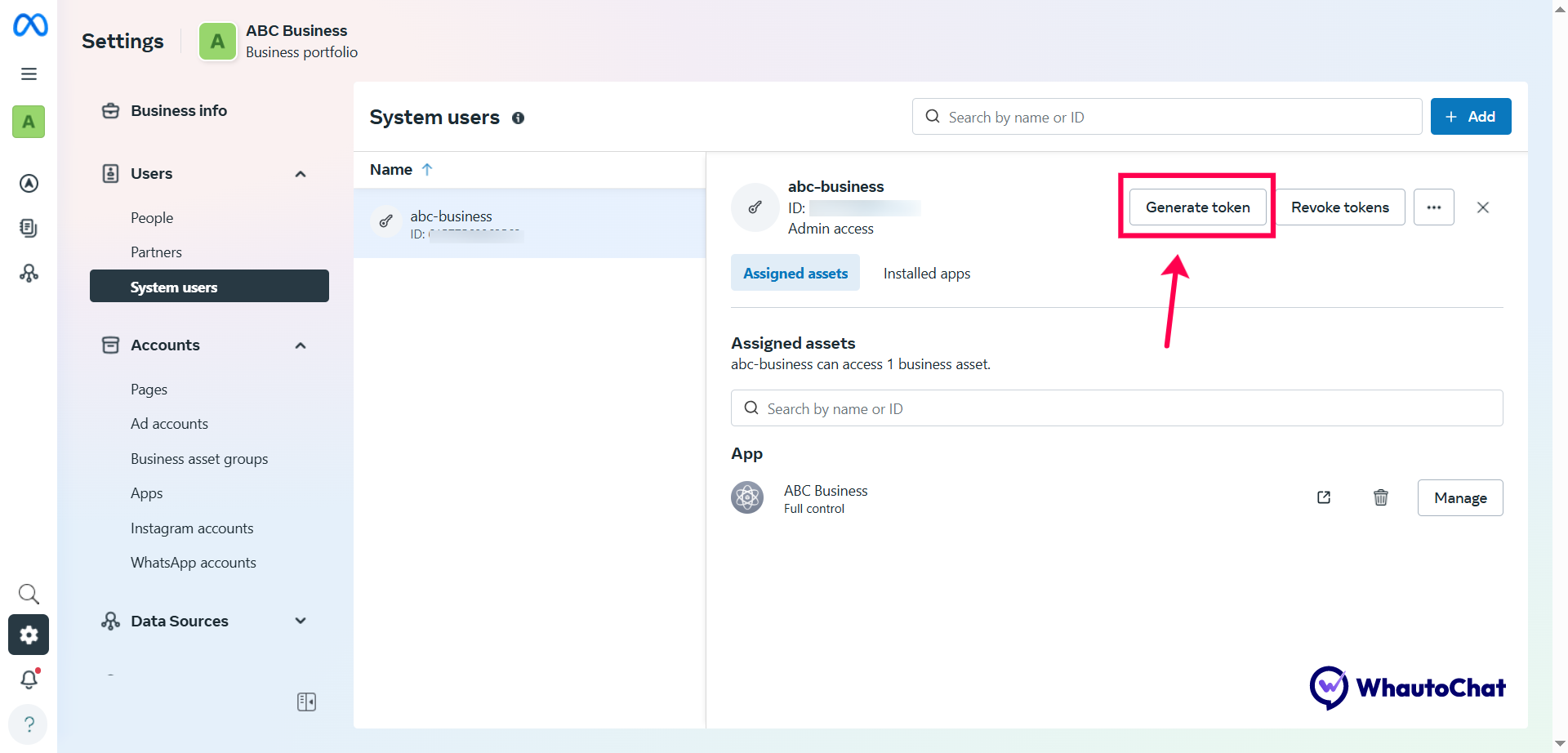

  1. Scroll up → Click Generate Token

Generate Token

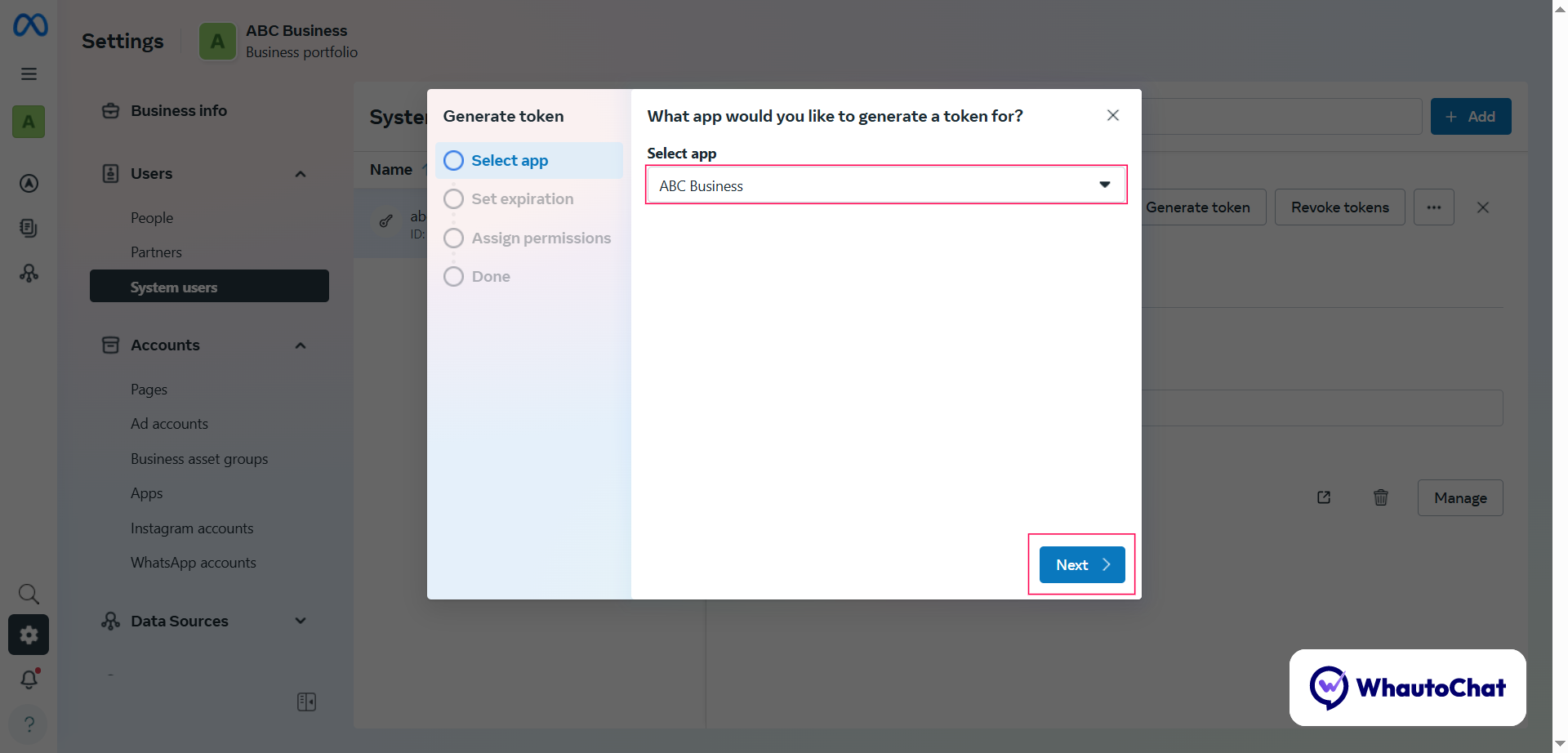

  1. Generate Token:
  • Select your Meta App Eg. ABC Business → Click Next

Select Meta App

  • Token Expiration: Select Never → Click Next

App Token Expiry

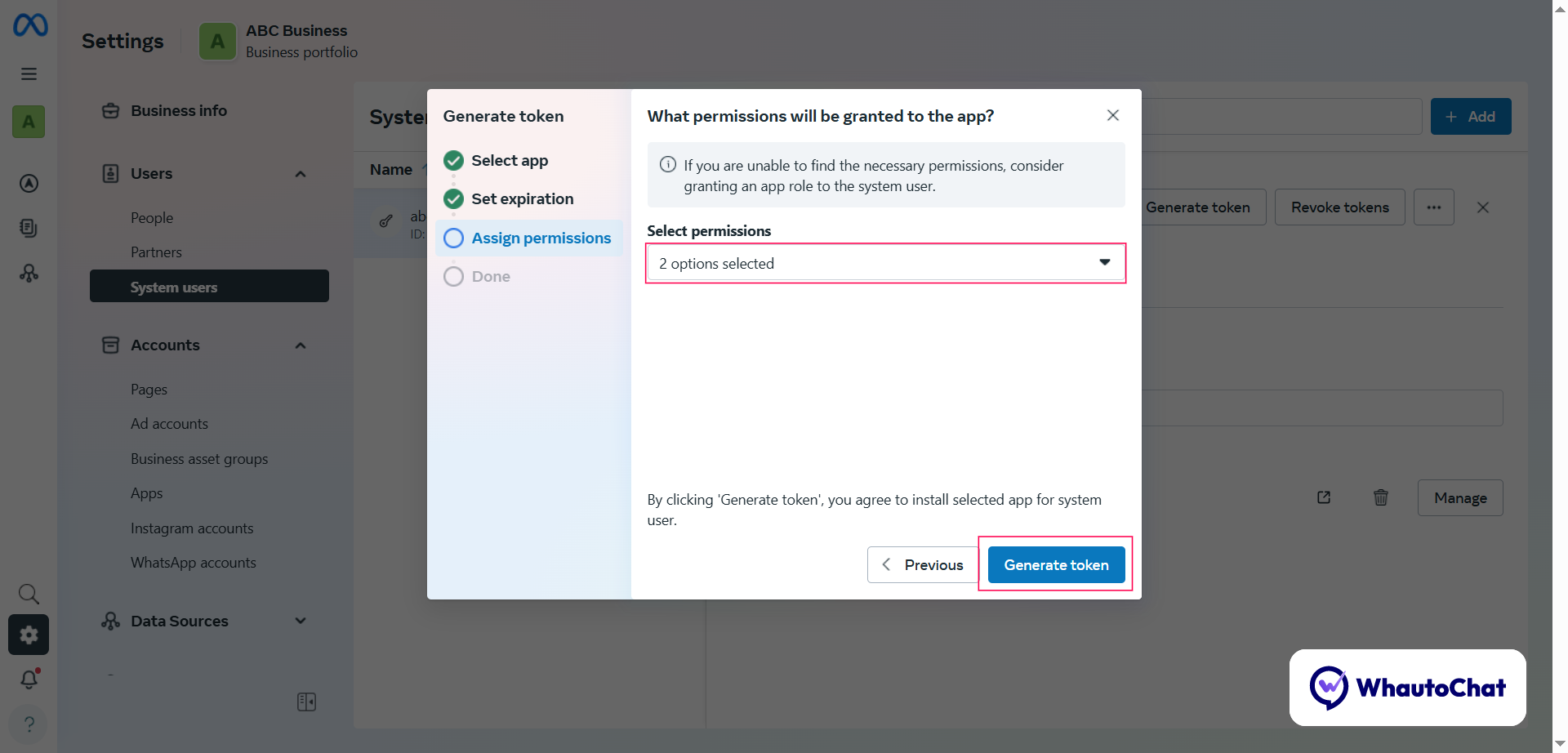

  • Select below mentioned 3 Permissions:
  • whatsapp_business_management
  • Whatsapp_business_messaging
  • business_management
  • Click Generate Token

App Token Permissions

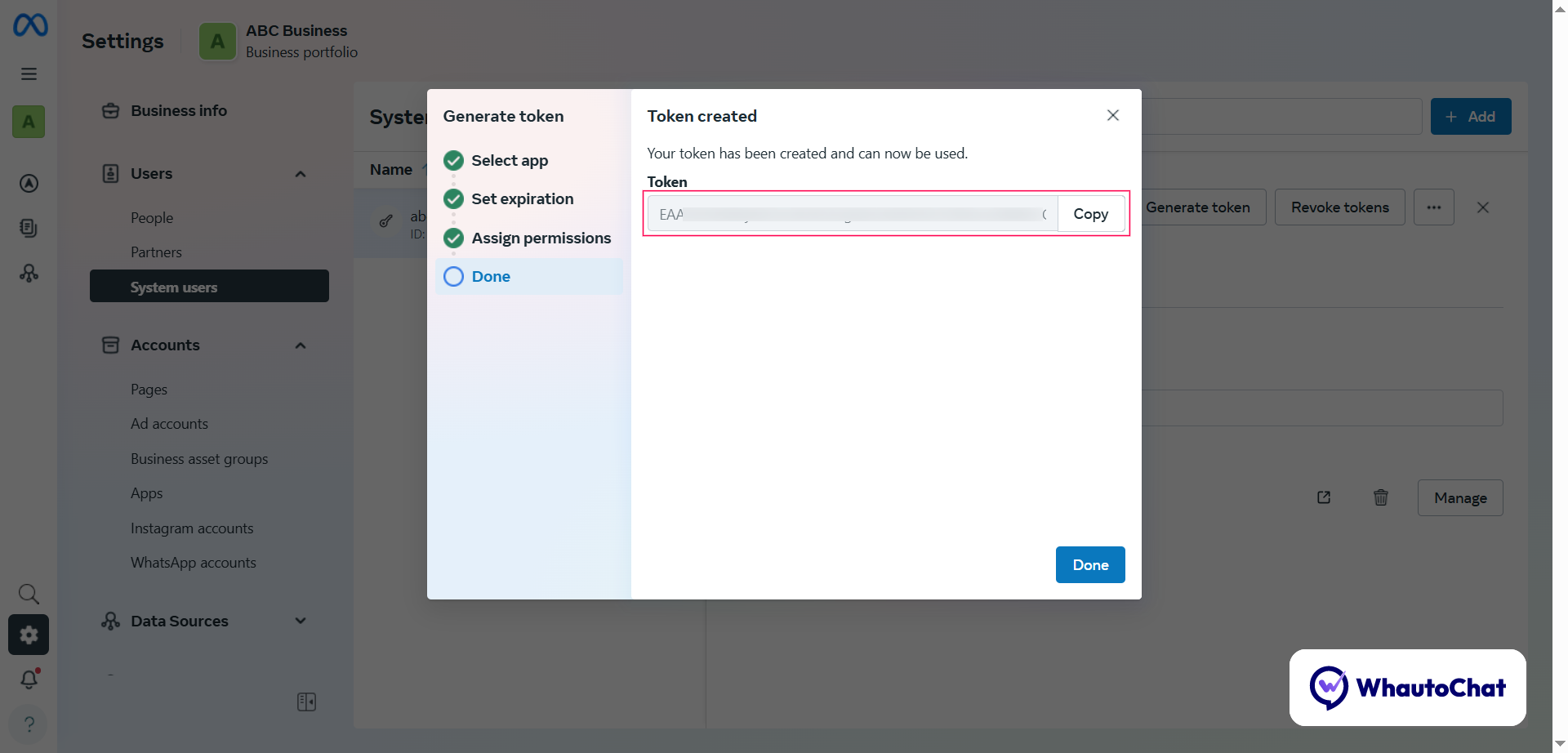

  • 🔐 Copy the generated Token → paste into WHATSAPP_APP_TOKEN
  • Update your (web-server.env) file with this value.

App Token Generated

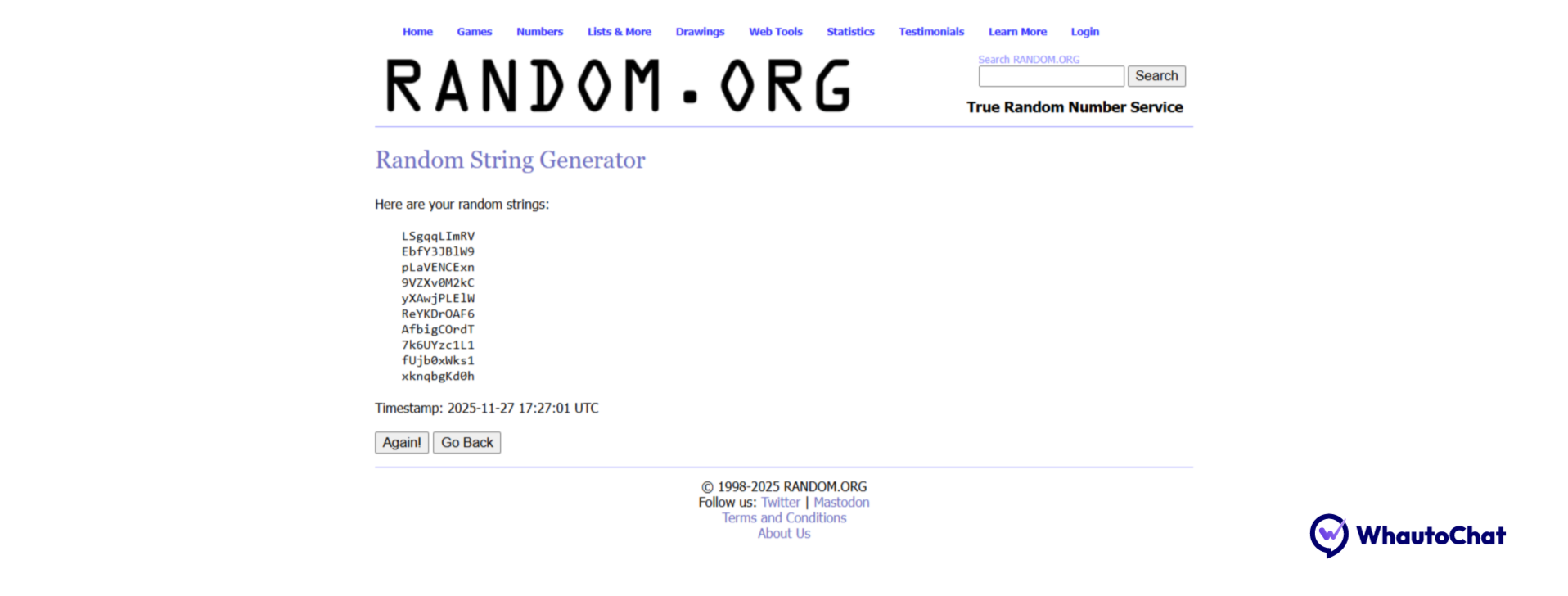

🧪 Step 8: Set WhatsApp Verify Token​

  • The Verify Token can be any random string.
  • To generate one quickly, visit:👉 https://www.random.org/strings
  • You’ll see a list of randomly generated strings.
  • Copy any one of them and update it in your WhatsApp configuration list.

Random Verify Token Example: 2AqYO0vP0M → paste into WHATSAPP_VERIFY_TOKEN

✅ Step 9: Update Your .env File​

Here’s how your final configuration should look:

WhatsApp Integration

WHATSAPP_APP_ID="112233445566778"
WHATSAPP_APP_SECRET="a1b2c3d4e5f6g7h8i9j0"
WHATSAPP_CONFIGURATION_ID="9988776655443322"
WHATSAPP_APP_TOKEN="EAAJZCZA2wZA1cUBABAZCZA3UZBvE4fWQ4BbZA1ZCZAUZBZCwZCmIvW8uZAJZChq4ZAzA2ZAedFZBG0UQZDZD"
WHATSAPP_VERIFY_TOKEN="2AqYO0vP0M"

🔹 After App Installation​

Post-Installation Configuration: Finalize Your Setup

💬 WhatsApp Webhook Configuration (Reseller SaaS License)​

⚠️ Important: Webhook configuration is mandatory and must be done only after installing the app. If skipped, WhatsApp incoming/outgoing messages will not work.

🔧 Step-by-Step Guide​

✅ Step 1: Open Your Meta Developer App​

  1. Visit https://developers.facebook.com
  2. Log in to the Facebook account used for your Meta app setup
  3. Click My Apps (top-right corner)
  4. Select your existing Meta App (e.g., ABC Business)

Select Meta App

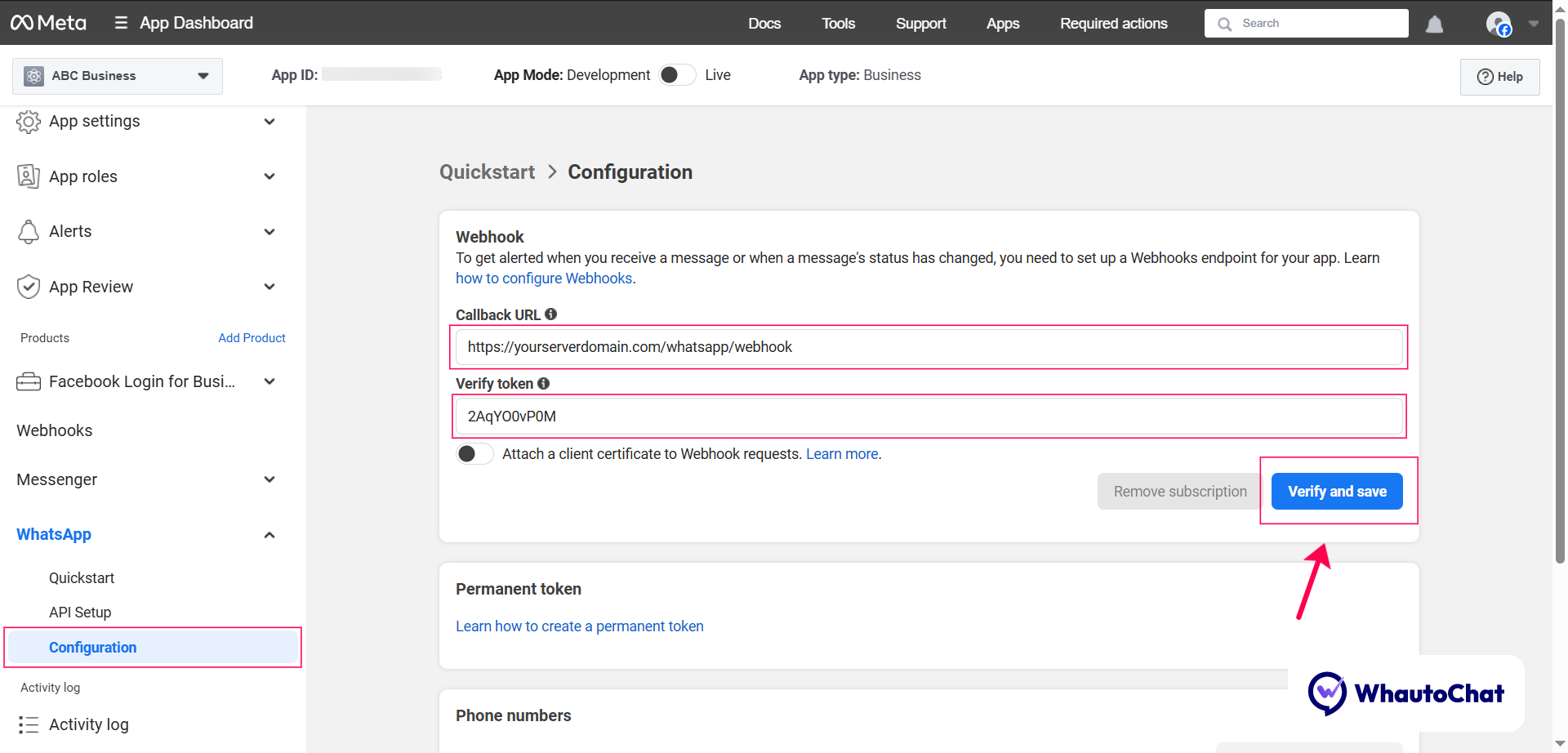

⚙️ Step 2: Configure Webhook for WhatsApp​

  1. In the WhatsApp menu:
  • Go to the Configuration section
  1. In the Webhook Configuration Modal:

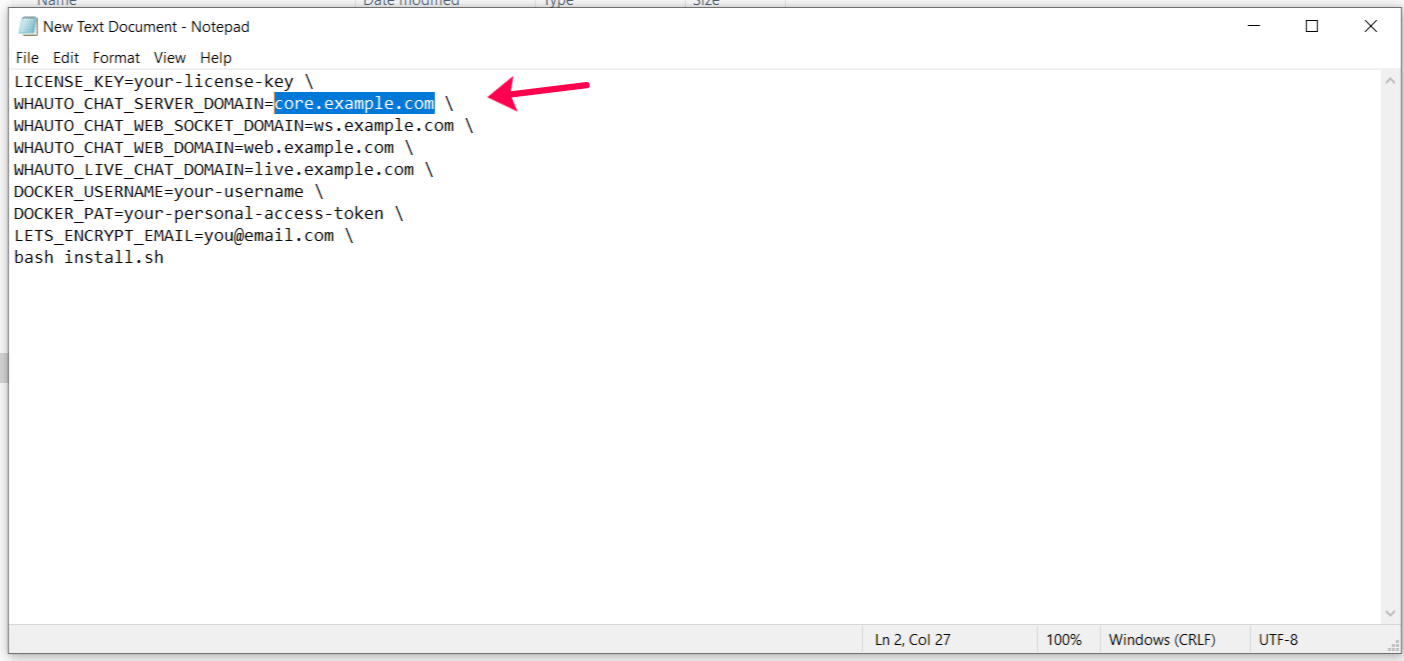

Replace yourserverdomain with the domain you configured during license installation.

backend server url

Example: https://core.example.com/whatsapp/webhook

  • Verify Token: Use the token from your .env file — WHATSAPP_VERIFY_TOKEN Example: 2AqYO0vP0M
  • Click Verify and Save

WhatsApp Webhook Configuration

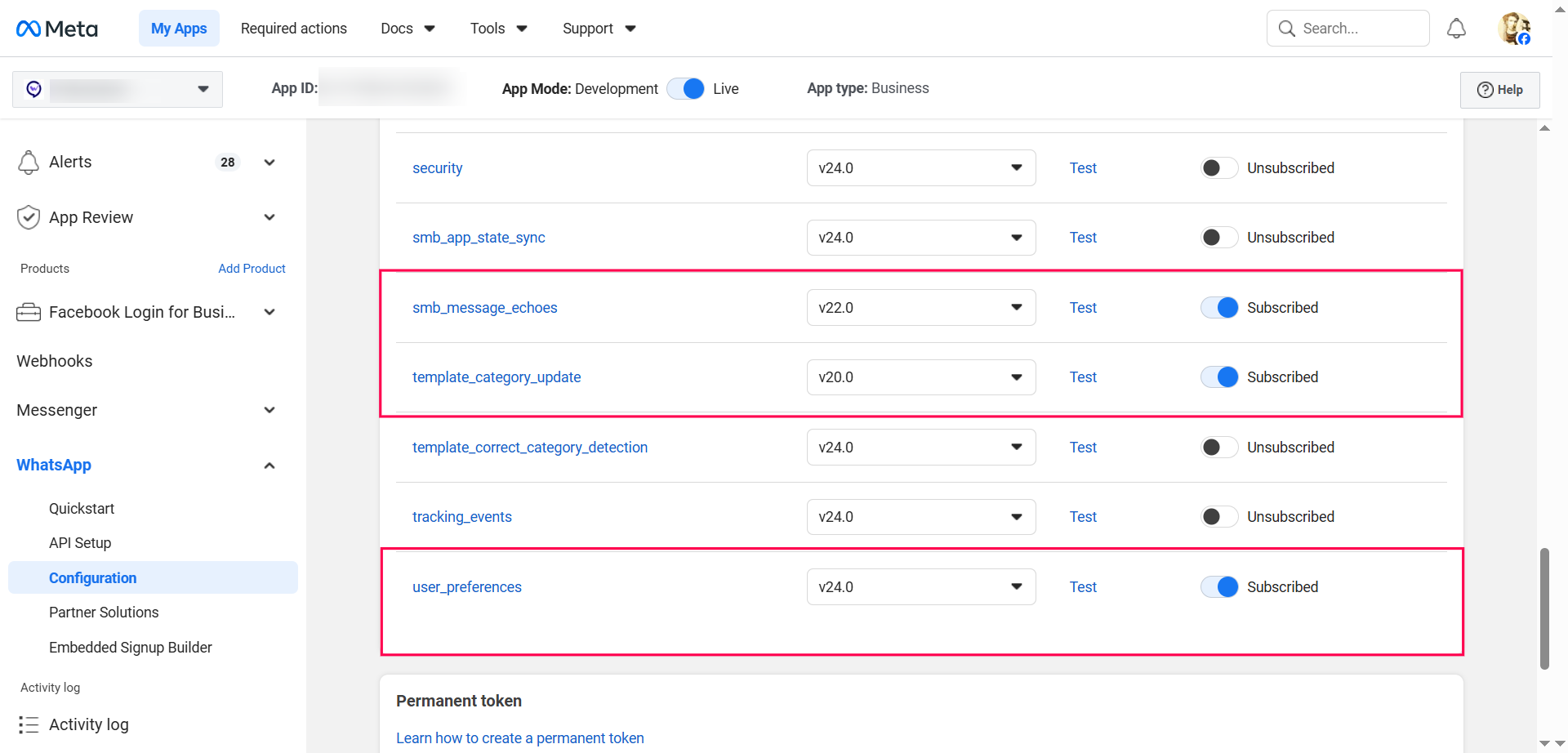

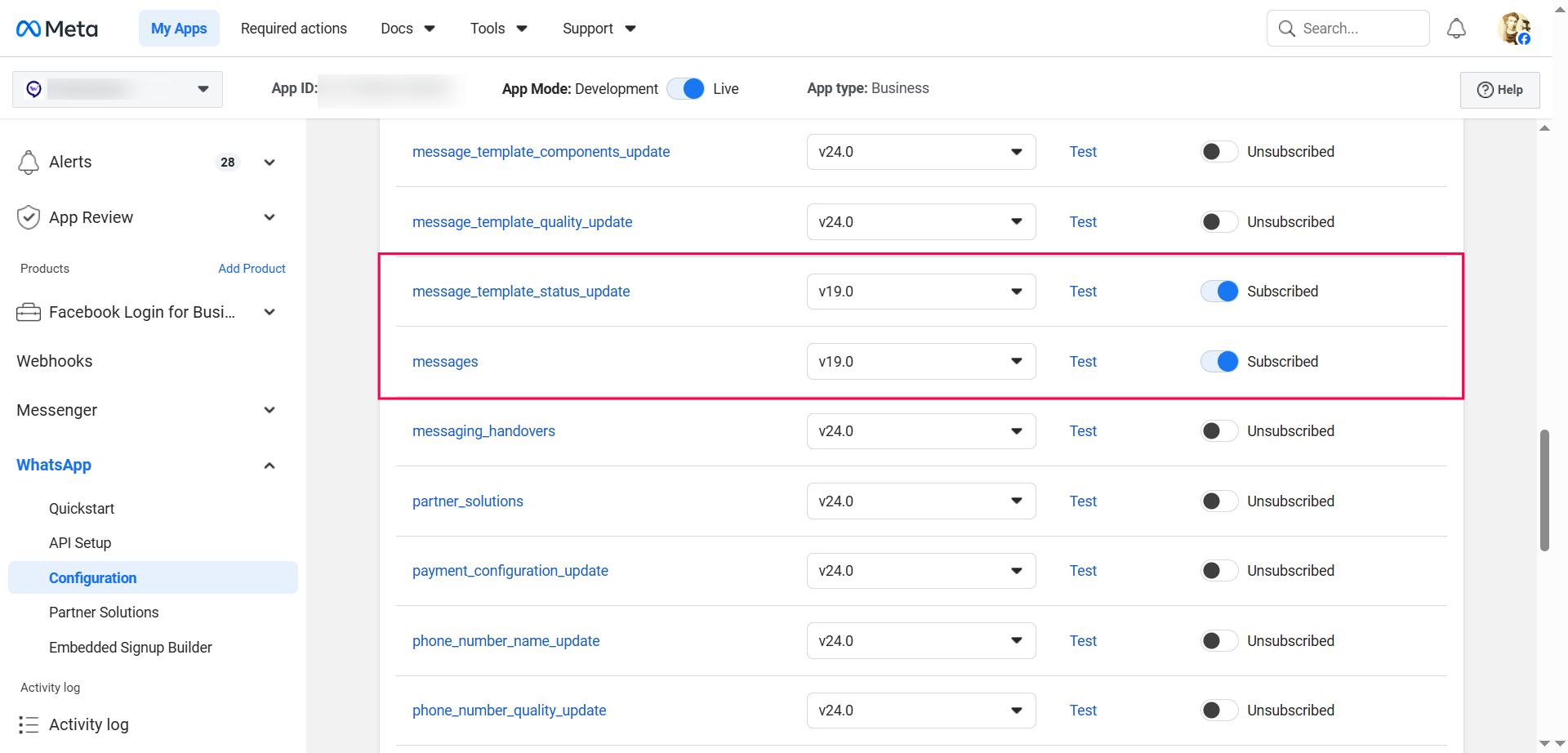

📡 Step 3: Subscribe to Webhook Fields​

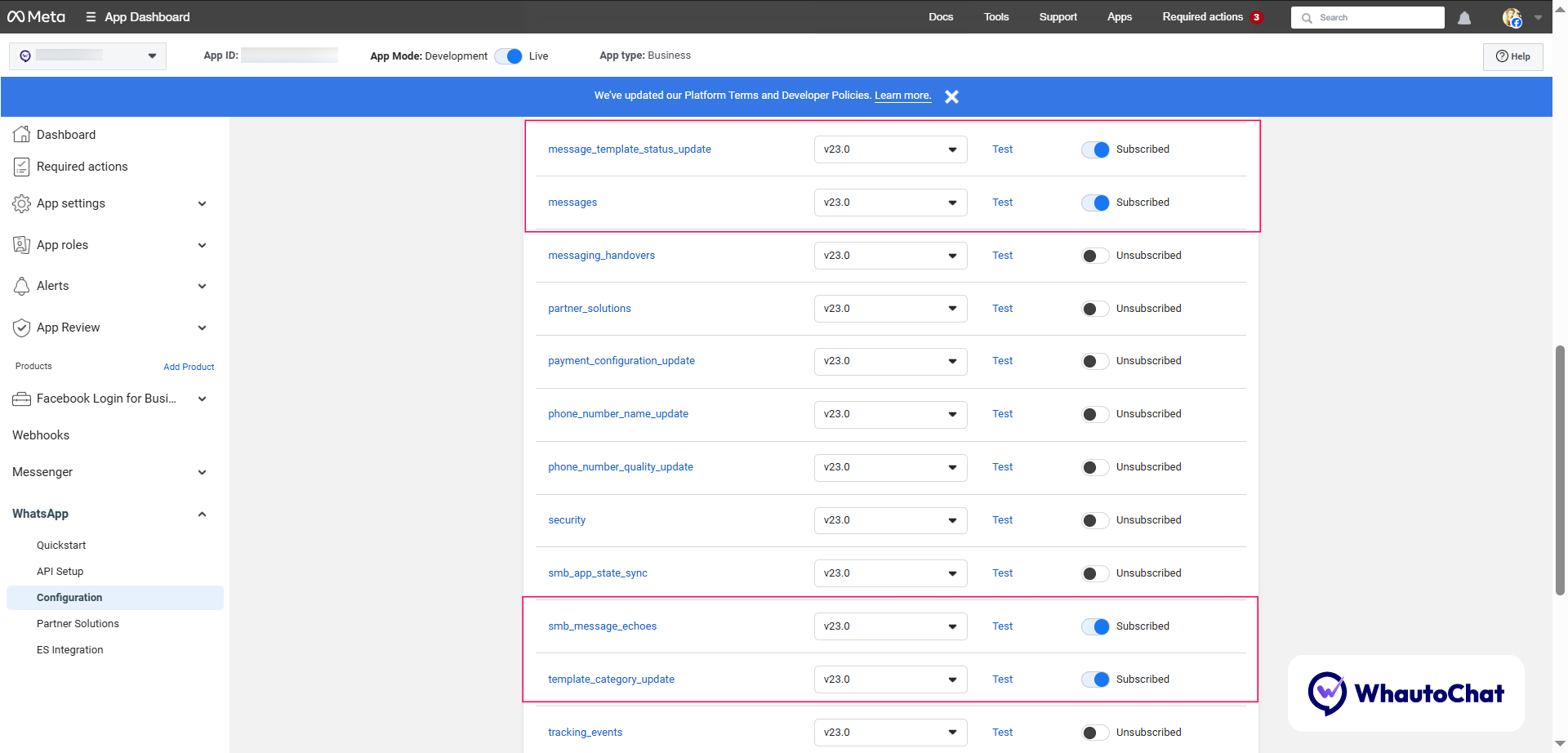

  1. Enable the Subscribed toggle for the following 5 webhook fields:
  • message_template_status_update
  • messages
  • smb_message_echoes
  • template_category_update
  • user_preferences

WhatsApp Webhook Fields

WhatsApp Webhook Fields

✅ Step 4: Finalize Setup in WhautoChat​

  1. Go to your self-hosted Installed WhautoChat app
  2. Complete the WhatsApp Integration
  3. Send a test message to verify the webhook connection

Additional Resources​

For advanced features or troubleshooting, refer to your WhatsApp API provider's documentation or WhautoChat support.
